Automatic Biodegradable HDPE LDPE Plastic Blown Film Extruder Film Blowing Extrusion Machine with Printing

US$20,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
PE Extruder and Printing Machine
Maximum Folding Width of Film
600mm
Screw Diameter
50mm
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE, ISO9001:2008
Printing Online
Printing Color as Customer Demand
Transport Package
Wrapping Film
Specification
CE, ISO9001: 2000
Trademark
Changyin
Origin
China
HS Code
84773090
Production Capacity
800set/Year

Packaging & Delivery

Package Size
589.80cm * 235.20cm * 239.30cm
Package Gross Weight
5500.000kg

Product Description

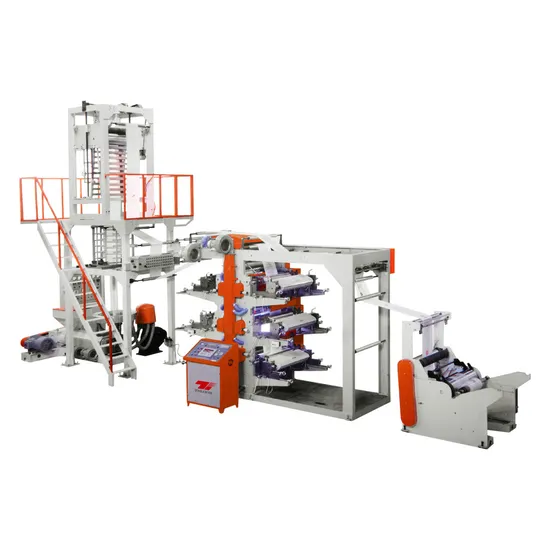

PE Film Blowing Extruder Machine And Printing Machine
Main Technical Parameters:
Model SJ-P50 SJ-P55 SJ-P60
Suitable Materials HDPE LDPE
Screw Diameter φ50 φ55 φ60
Screw L/D Length 28:1/30:1 28:1/30:1 28:1/30:1
Blowing Film Driving Motor 15kw 18.5kw 22kw
Max Extrusion Output 45kg/h 60kg/h 75kg/h
Die Size 60/80mm 80/100mm 100/125mm
Width of The Blowing Film 600mm 800mm 1000mm
Thickness of Blowing Film 0.01-0.06mm 0.01-0.06mm 0.01-0.06mm
Max Printing Width 560mm 760mm 960mm
Printing Length 250-1000mm 250-1000mm 250-1000mm
Precision of Color Printing Horizontal: 0.2mm - Vertical: 0.2mm Horizontal: 0.2mm - Vertical: 0.2mm Horizontal: 0.2mm - Vertical: 0.2mm
Weight of Overall(Two Color) 4500kg 5000kg 5500kg
Cover Dimensions(L*W*H) 8100*2200*4500mm 8500*2400*5000mm 9000*2800*5500mm

PS:We can also supply other size. Please send email to us.
