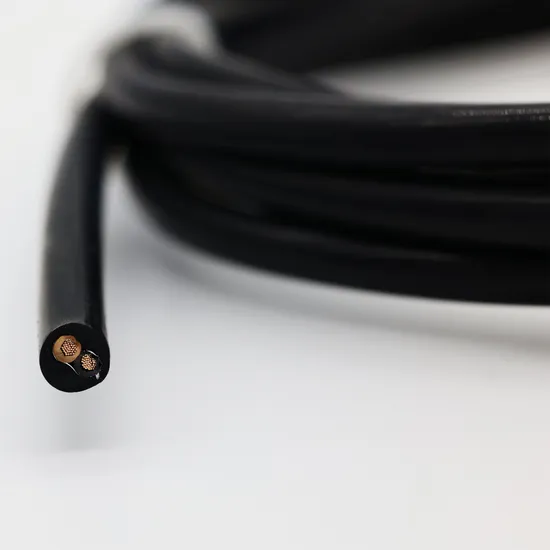

TPU Jacketed Automotive Tinned Copper ABS Sensor Cable

Product Description

Product DescriptionProduct Name: Multi-Core ABS Sensor Cable
Conductor Type: Stranded
Conductor Material: Tinned Copper / Copper
Core Type: 2/3/4/Multiple
Insulation Material: XLPE
Core Colour: BK/WH/YE/RD/GY/Customized
Jacket/Sheath Material: TPU
Jacket/Sheath Colour: BK/OG/Customized
Appearance: Bright/Foggy
Rated Temperature: 125ºCProduct Specifications

Core			Conductor			Insulation				Outer Sheath
No.	Size [mm2]		NO.	Diameter [mm]		Thickness [mm]		Diameter [mm]		Thickness [mm]		Diameter [mm]
2	0.35		19	0.15		0.35		1.50		1.00		5.00 ± 0.05
	0.50		19	0.18		0.25		1.40		0.85		4.40 ± 0.05
	0.50		28	0.15		0.35		1.60		0.90		5.00 ± 0.05
	0.75		42	0.15		1.15		0.45		1.05		6.00 ± 0.05
3	0.20		7	0.20		0.12		0.90		1.00		4.00 ± 0.05
	0.50		28	0.15		0.50		1.60		0.90		5.00 ± 0.05
	0.75		24	0.20		0.33		1.80		1.15		6.20 ± 0.05
4	0.50		28	0.15		0.35		1.60		1.20		6.20 ± 0.05

Detailed Photos
Certifications
Product Environments
Packaging & Shipping
FAQ1) How can I get a sample for testing?
a.If we do have inventory and sample quantity is small, it's free.
b.If we do not have inventory or large quantity is required. you need to pay the produts and freight cost.
2)Do you Support Customized Product Specification?
Yes, Simply offer your products specification.A Drawing or Diagram will be helpful.
3) What is your Leading Time?
Normally, we finisish your order in 2~3 weeks, and 4~6 weeks in peak seasons.
4) What is your company's MOQ?
We do have MOQ requirements, but smally quantity also accepted for some products.

---
