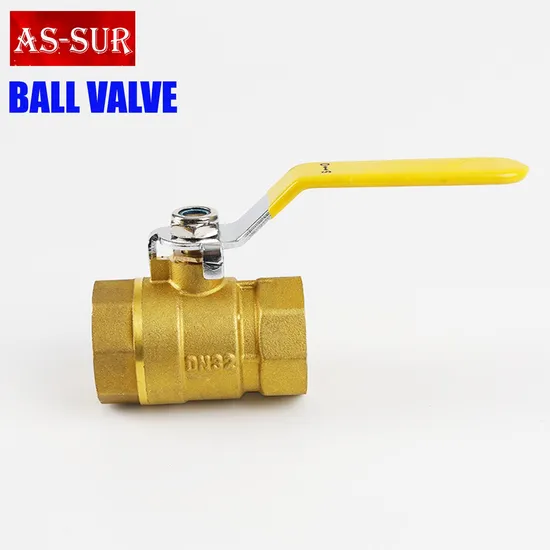

Reduce Pressure Industrial Water Gas Oil Control Brass Ball Valve

Product Description

Pressure Reducing Industrial Radiator Water Gas Control Brass Ball Valve
2 pcs full bore brass Ball Valve,conform to BSEN13828-2003
Including 2PC/3PC gas ball valve and water meter ball valve.
1.Material: Hpb57-3%, Hpb59-1%, C37700, C3604, CW614N,CW617N,C36000 and DZR free brass
2.Nominal pressure: 2.5MPa
3.Suitable medium: Water, no-causticity liquid, and steam
4.Working temperature: -20 to 120° C
5.Brass ball with chrome plating and steel handle stem or iron handle
6.Full port Size: 1/2"-4"
7.Female x Female
8: Packing: 1/2" 1pc/PE bag; 12pcs/Inner box; 10inner boxes/Carton
3/4" 1pc/PE bag; 10pcs/Inner box; 8 inner boxes/Carton
1" 1pc/PE bag; 8pcs/Inner box; 6 inner boxes/Carton
9: Shipping:goods will be shipped by sea after 25-35 days after receiving deposit
10: MOQ: 1000PCS
Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases.They feature a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle or iron handle.Thread: BSP, NPT
.
Customized Designs are Accepted,We can produce various ball valve according to your request.

Item Code	Item Description	Size	Weight/Grams	Handle Weight/Grams	Pcs/Ctn
AS-BV001	brass ball valve for water and gas with steel handle nickle plated	1/2"	170g	35g	100
		3/4"	240g	35g	100
		1"	355g	50g	80
		1 1/4"	520g	70g	48
		1 1/2"	740g	70g	32
		2"	1150g	100g	24
		2 1/2"	2000g	200g	10
		3"	3000g	200	6
		4"	4700g	200g	6

Basic Technical Dates
1.Brass Material Used
HPB57-3 HPB59-1	CW614N CW617N	CuZn39Pb3 CuZn40Pb2	Lead Free Copper	C3604
2.BasicTechnical Dates
Type Of Thread	Surface Treatment	Temperature	Pressure	Medium	100% Leakage Testing
ISO228/BSP/NPT/JIS Standard	Orgianl Color Nickel Plated Polished Chrome	0≤T≤ 120ºC	1.6MPA	Water/oil/gas
3.Description Of Parts
Ball	Stem	Sealing	Handle	Nut
Brass with Chrome Plated	Brass/Iron	PTFE(Teflon)	Iron Handle Aluminum Handle Butterfly Handle	Brass/Steel/Iron
Iron With Chrome Plated

---
