Telehandler 3.5 Ton 7-10 Meters 4X4 Hydrostatic Telescopic Handler Stacker

Product Description

Product Description
HZTH3507 3.5 ton telehandler, 3.5 ton 7 m telehandler, Agricultural telehandler
3.5 ton telehandler, 3.5 ton 7 m telehandler, Construction telehandlers
Fluid filters (engine oil, hydraulic oil and fuel) are centrally located for fast, easy servicing. The air filter is easily accessible too, and its double-element design simplifies cleaning; yet another reason why Hua drill Construction telehandlers have best-in-class SAE serviceability ratings.

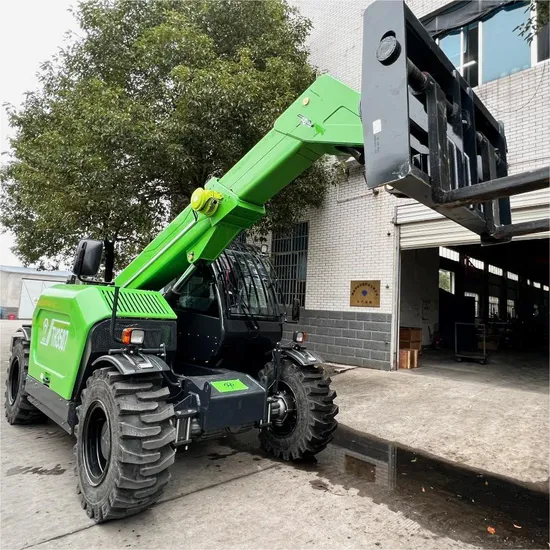

telehandler HZTH3507 is the 3.5 ton telehandler that can lift, transport, and stack goods. The system mainly consists of the dedicated 4x4 chassis, boom system, leveling system, power transmission system, electrical control system, and hydraulic system.
Hua Drill telescopic handlers enjoy proven demand supported by legendary productivity and build quality, ensuring high residuals the world over. DieselMAX can be adapted to run on lower-grade fuels, making Construction telehandlers easily resalable across different states and territories, boosting residuals further still.
HZTH3507
Class-leading Hua drill hydraulics produce the fastest cycle times, ensuring the most efficient lifting, extending and pushing.
Multi-function single lever servo control provides fast and accurate load placement. Controlling your Hua Drill telehandler's direction is easy too, with just a flick of a switch.

Our telescopic forklifts help customers build houses, move bricks on site, and are powerful enough to withstand all kinds of muddy road conditions

Our telehandler added buckets help customers take out their garbage. At the same time, you can also load forks to achieve different functions. We hope our equipment can bring more benefits to our customers.

This picture is from the customer's construction site. We have reminded the customer that such operation is dangerous, And he has corrected this wrong practice. But our telescopic arm helped the customer solve his problem very well. I hope our equipment can bring more benefits to our customers.

Detailed Photos

Joystick	Load Limiter	Screen
Quick change fork	45% Grade Ability	Maglev Adjustable Seat
Four Wheel Steering Type	Front Wheel Steering Type	Crab Steering Type
LED Light For Night	Cab Driver View and protection	Standard with AC,Fan,Option Heater

Product Parameters

NO.	Items		Parameters
			HZTH3507
1.	Outline dimension	Length ( m m )	5000
2.		Width ( m m )	2220
3.		Height ( m m )	2410
4.	Dead weight (kg)		6850
5.	Wheelbase ( m m )		2700
6.	Capacity Kg		3500
7.	Max Lifting Height (mm)		7020
8.	Maximum height weight(kg)		2100
9.	Maximum full extension distance(mm)		3800
10.	Maximum lifting capacity at full extension(kg)		1200
11.	Hydraulic system flow (1/min)		80
12.	Hydraulic fuel tank capacity (L)		130
13.	Engine	Brand	Cummins
14.		Model	QSB3.9-C100-30
15.		Emission	National III
16.		Power (kw@rev)	74/2200
17.		Torque(N@rev)	480/1600
18.	Maximum mobile speed (kmh)		40
19.	Grade ability ((% )		40%
20.	Departure angle(°)		33
21.	Swing angle of axle frame (°)		8
22.	Tire specification		14-16.5-12pr

Certifications
Company Profile
Established in 2017, Hunan Hua Drill Intelligent Technology Co., Ltd. (HuNan Hua Zuan industrial Co.,Ltd) is a company focusing on various businesses, including but not limited to the design, manufacturing, sales and maintenance services of engineering machinery products, leasing of construction machinery and equipment, R&D, sales and services of material handling equipment and port handling equipment, import and export of electromechanical products and technologies etc..
The company is located in Changsha Economic and Technological Development Zone, Hunan Province, with a registered capital of 10 million RMB. It has very strong capabilities for research and development. There are currently 18 personnel in R&D center, of whom 7 are with senior professional titles. Committed to creating a world-class advanced intelligent manufacturing enterprise, Hua Drill always devotes to innovation and development, it also keeps close cooperation with Dalian University of Technology.
FAQ
1:What about the delivery time?
A:60 days after receiving the deposit.
2:What about the warranty time?
A:12 months after shipment or 2500 working hours, whichever occuts first.
3:What is the proportion of the deposit?
A:30% By TT and balance before ship.
4:what is the transport solution?
A:For 4007-4507-5007 by 40HQ container with 2 units. for 4018 by 40HQ container with 2 units.
5:What type of transmission?
A:standard telehandler with hydrostatic type transmission, optional : Engine with torque converter.
6:What is the maximum climbing capacity?
A:45%.
7:What's the fastest speed telehandler can go?
A:Standard machines with 28 km, optional 40Km.
8:Where has the telehandler been sold?
A:Currently, we had achieved bulk sales in Europe, Africa and Southeast Asia.
For example: Russia, Indonesia, South Africa, Cote d 'Ivoire, Nigeria Etc.
9:What kind of after-sales service do you have for your equipment?
A:We have a dealer to support you in Russia, Indonesia, Nigeria , South Africa , if your area is no dealer , we can send free with telehandler during the ship, when you need we can provide video talk for after service, or we can send engineer to you area.

---
