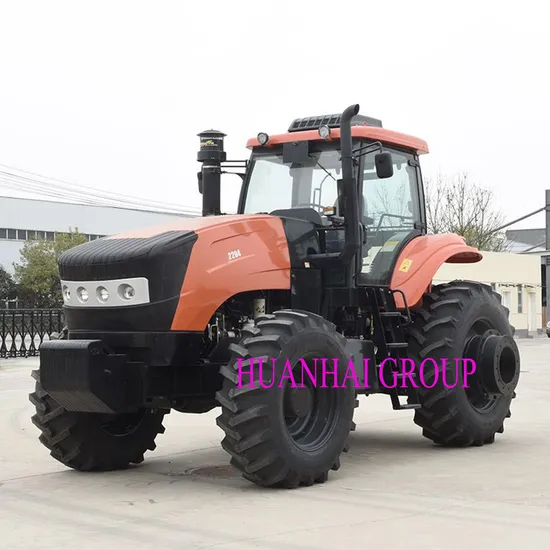

100HP 200HP 240HP Big Tractor

Product Description

Tractor model: LT404
Pattern: 4 x 4 (four-wheel drive)
Dimensions: 3514 x 1750 x 2130mm
Spread of axies (mm): 1924
Front wheel tread (mm): 1250
Rear wheel tread (mm): 1200-1500 (commonly used 1300)
Smallest gully (mm): 325
Agronomy gully (mm): 375
Changes radius (mm): Unilateral brake: 3.4
Unilateral does not apply the brake: 4.1
Structure quality: 1890
Smallest use quality: 2080
First disposes: 144
Latter disposes: 360
Fixed force of traction (KN): 12
Engine model: 490BT
Demarcation power (KW): 29.4
Coupling: 10 inch dry list function or double-acting
Gear box: 4 x (2 1) keeps off the composition type meshing wrap to shift gea
Speed range: 2.4-31.9
Central rotation: Screw round bevel gear pair
Differential device: Two planetary gears, closed type
Differential lock: Plug type
Final transmission: Planet gear type
First driving axle
The entire seal bevel gear type (four-wheel drive type uses)
Transfer case
The straight tooth cylindrical gears (four-wheel drive type uses)
Front wheel tire specification: 8.3-20
Trailing wheel tire specification: 12.4-28

Model		504	554
Overall dimension(LxWxH)		3770X1620X2130	3875X1635X2145
Wheelbase(mm)		1990	2010
Front-wheel tread(mm)		1265	1265
Rear-wheel tread(mm)		1200~1500	1200~1500
Min. Ground clearance(mm)		330	330
Min. Turning radius(m)(not apply the brake with single side)		4.3	4.3
Gear(front/rear)		12/12 (8/4 8/8 optional)	12/12 (8/4 8/8 optional)
Speed range(forward/backward)		34.02-2.55/ 29.82-2.24	34.02-2.55/ 29.82-2.24
engine	Model	A498BT-6A	A4K41T55-002
	type	In-line,water-cooling,four stroke
	power	36.8		40.4
	R o tating speed	2400		2400
Specific fuel consumption(g/kW@h)		≤245		≤245
Tire size(front/rear)		8.3-20/13.6-28		8.3-20 /13.6-28
Hydraulic lift capacity(kN) 610mm from suspension point		8.28		9.1
Driving output axis type		Postposition,semi-independent
Driving output axis turning speed(r/min)		540/760,or 540/1000 optional

---
