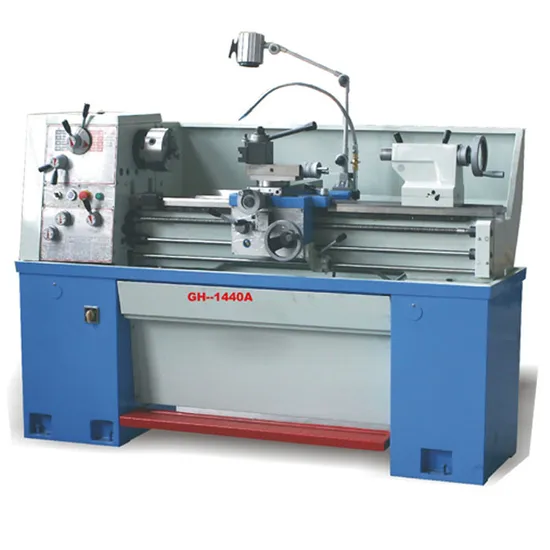

Universal Horizontal Metal Lathe Machine Price (GH1440A)

Product Description

Universal Horizontal metal Lathe machine price (GH1440A) Product Description

Feature: Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effectV-flat longitudinal table guide, double-V cross table guideSpindle features axial and radial, clearance-free, pre-tensioned bearingsSeperate hydraulic unit with heat exchanger to omit vibrations and thermal loadSpecial hydraulic system guarantees gentle table adjustment even at full loadSolidly constructed and well supported structure assures high stabilityDigitally controlled, automatic vertical feed with servo motorInfeed via rapid feed to height of workpiece, adjustable to finishing and sparking, automatic lift at program endAdjustable longitudinal and cross table movement via end stops Product Parameters

Specification:

Model		GH1440A
Max.Swing.over bed	mm	Φ356(14')
Max.Swing.over cross slide	mm	Φ220(8-5/8')
Max.Swing.over gap	mm	Φ506(20')
Bed width	mm	206(8')
Max.Distance between centers	mm	1000(40')
Taper of spindle bore		MT#5
Diameter of spindle bore	mm	Φ38(1-1/2')
Steps of spindle speeds		16steps
Range of spindle speeds	r/min	45-1800rpm
Spindle nose		D-4
Metric thread range	mm	0.45-7.5(22kinds)
Inch screw thread range	TPI	4-112(40kinds)
Range of longitudinal feeds	mm	0.03-0.688(0.0011-0.0271'in/rev)
Range of cross feeds	mm	0.015-0.220(0.0003-0.01'in/rev)
Diameter of leadscrew	mm	Φ22(7/8')
Pitch of leadscrew	mm	4(8T.P.I)
Travel of tailstock quill	mm	120(4-3/4')
Diameter of tailstock quill	mm	Φ45(1-25/32')
Taper of tailstock quill		MT#3
Main motor power	Kw	1.5/2.4
Packing size of lathe(LxWxH)	mm	1900 x760 x1460
Net Weight/Gross Weight	Kg	960/875

Standard accessories:

3-Jaw chuck

4-Jaw chuck

Splash guard

Work light

Coolant system

Foot brake

Face plate

Steady rest

Follow rest

Operation manual

Optional accessories:
Live Center,
Drill Chuck+Drill Arbor,
Leadscrew Guard,
Chuck Guard,
Localizer,Clutch For Feed Rod,
Quick Change Tool Post,
Digital Readout(2 Axis)
Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
Welcome to contact us!
Canthy Guo
Tengzhou Uni-tech Co. Ltd

---
