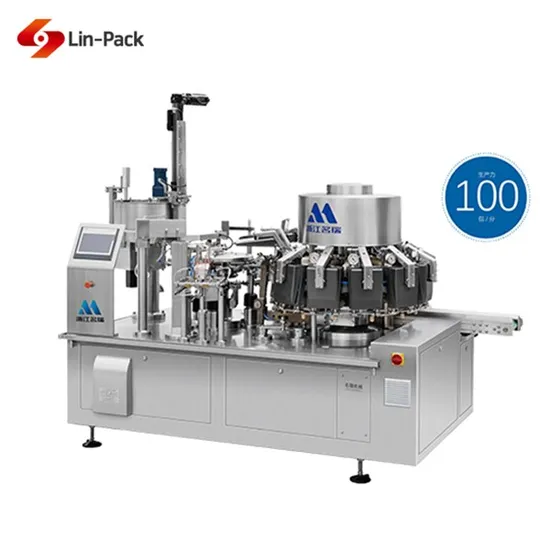

Automatic Aluminium Foil Bag Konjak Pouch Vacuum Packing Machine

US$40,000.00-55,000.00 1 Set (MOQ)

Basic Info.

Model NO.
MR10-130ZK
Automation
Automatic
Inflatable Device
With Inflatable Device
Type
Rotary Vacuum Packaging Machine
Object State
Powdery, Solid, Puffed Food, Daily Commmodities, etc
Condition
New
Bag Sizes
W: 55-130mm L: 80-180mm
Pouch Types
Pre-Made Pouchs Such as Zipper Bag,Stand up Pouch
Transport Package
by Sea or Air. Wooden Case
Specification
1600kg
Trademark
Lin-Pack
Origin
Wenzhou, Zhejiang, China
HS Code
8422400090
Production Capacity
1000 Sets/Year

Product Description

Product Specification
Model MR10-130ZK
Pouch Type Stand-up pouches, zipper bags, four/three-side sealed bags,paper bags,etc
Bag size W:55-130mm; L:80-180mm
Max Filling 1000g
Max Speed 60 bags/min
Power 5.5kw
Dimension 2500*1600*1650
Wight 2100kg
Features and Characteristics There are filling system and vacuum system rotary packing machine
Quick change-over, the height of automatic bag feeding device can be adjusted automatically
Comply with the sanitation requirements of food processing machines
Easy to operate
Sealing temperature detection
The pouch is sealed by instant heat sealing and cooling, so that the sealed part will be smooth and beautiful.
Application Puffed food, candy, biscuit, peanut, cookies, pistachio, crystal candy, brown sugar, daily commodities, cooked food, pickles
necessary infos offered in enquiry pouch type
pouch size
filling material
Application
Puffed food, candy, biscuit, peanut, cookies, pistachio, crystal candy, brown sugar, daily cpmmodities, cooked food and pickles
Work Process
Product Description
Pouch Type
Main Standard Equipment Part
1. Date printer
2. PLC control system
3. Pouch opening devices
4. Vibrator device
5. Cylinder
6. Magnetic valve
7. Temperature controller
8. Vacuum pump
9. Frequency convertor
10. Output system

Optional Configuration
material weighing filling machines, work platform, weight checker, material elevator, finished product conveyor, metal detector
