Automatic PET / Plastic 5 Gallon Bottle Washing Machine Price
Product Description
Brief introduction :
The 5 gallon washing machine is used for cleaning barrel inside before filling process. It consist of transmission machine, brusher, water pump, setting 2 brushing working place, spurt interior and exterior with water, rotate washing to carry out empty barrel’s whole part was washed, the washing quality is stable.
The machine is used for cleaning barrel outside before filling process. It consists of transmission machine, brusher, water pump. Setting following function: main brusher, bottom brusher, side brusher and so on. Exterior brushing and spray with water, rotate brush can carry out cleaning the outside barrel, washing quality is stable.
Machine picture:

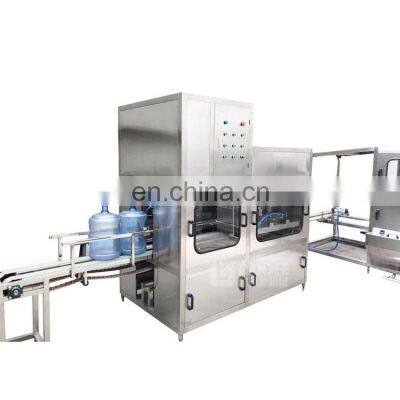

Outside and Inside Brushing Machine (2-in-1)
Inside and outside burshes
Structure of Inside brush
2pcs Inside brush
Structure of outside brush
Electrical control box
Main technical data:
| Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
| Volume | 3&5 Gallon |
| Barrel size | Φ270*490mm |
| Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
| Air pressure(MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Air consumption(m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated voltage | 380V/ 50HZ |
| Weight(KG) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Related products
Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
