Product Details
Product Description
Product Description

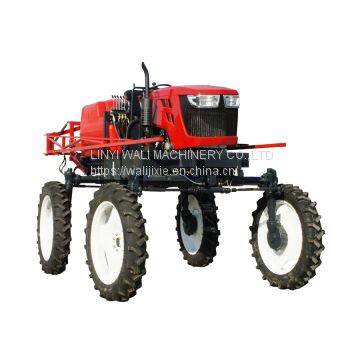

self-propelled farm sprayer for paddy rice fields
Self-propelled agricultural insecticide sprayer crop insecticide sprayer
Self-propelled high clearance farm field sprayers
self-propelled agricultural corn sprayer
Product Description
Farm self propelled type Spray boom sprayer can be widely used in soil treatment before sowing, seedling herbicides and pest control soybean, wheat, rice, potatoes and other crops and herbs, grass, garden flowers and other plants and other large areas. This model is suitable for a variety of pesticides and other herbicide spraying operation.
corn insecticide boom sprayer Features:
1. electric boom, gentle manipulation, simple and convenient.
2. The four-wheel steering, steering convenient, less pressure seedlings, less money, unique system, 5 minutes straightening.
3. Can be installed fertilization ,lift fertilizer spreader, convenient plus fertilizer, manure spreaders evenly.
4. Unique in-gear mechanism, convenient and easy to operate.
5. Loader Frame , Hydraulic system , strong anti-sabotage, durable.
Model
| 3WPZ-700D
|
Overall size
| 4700×1700×2800 mm
|
Net weight
| 1720 KG
|
Work width
| 10800 mm
|
Ground distance
| 1000 mm
|
Wheel base
| 1500 mm
|
Axle base
| 2120 mm
|
Max turning radius
| 1800 mm
|
Sprayer nozzle work height adjust
| 550～1350 mm
|
Engine type
| Changchai Horizontal, diesel engine
|
Start type
| Electric
|
Discharge
| 1.246 L
|
Engine power
| 38 KW/52HP
|
Fuel tank
| 15 L
|
Gear box
| F1/2/3/4/R
|
Steering mechanism
| Hydraulic steering
|
Differential mechanism
| Straight bevel gear
|
Tire pressure
| 0.3-0.4 Mpa
|
Start motor power
| 1000W 14V
|
Light
| 12V；Front light 70W；Rear light 40W;
Cornering lamp 20W
|
Sprayer pump model
| MB460/2.5
|
Sprayer pump type
| Diaphragm type
|
Sprayer pump flow
| 60 L/min
|
Sprayer pump pressure
| 2.5 MPa
|
Tank capacity
| 500 L
|
Work pressure
| 0.3-0.5 Mpa
|
Work width
| 12 m
|
Sprayer nozzle
| 24 pcs
|
Sprayer nozzle type
| Fan-shaped atomizing nozzle
|
Work effiect
| 3-5 km/h
|
Working hour productivity
| 3.2-4.8 hm2/h
|
Spreader model
| FD260
|
Spreader tank
| 260 L
|
Spreader max work width
| 12 m
|
>>
