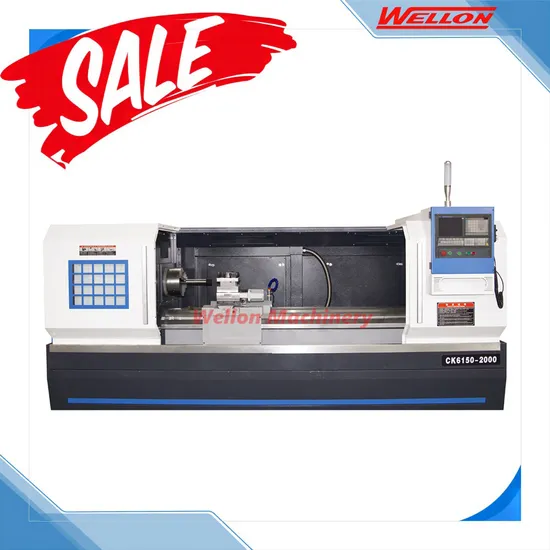

Flat Bed CNC Turning Lathe Machine (CK6150 horizontal Turning Machine)

Product Description

Product Description
Products Description
Performence Features:
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,end face. It can also turn the single and multiple threads in metric , inch and other standard.
1.high rigidity pedestal and wider lay board are suitable for heavy cutting
2.four station electric turret
3.frequency conversion stepless speed regulation
Technical parameter:

SPECIFICATION	CK6150
Max. swing over bed	500mm
Max. swing over cross slide	250mm
Max. processing length	1000mm
Guide way width	400mm
Spindle bore	82mm
Max. diameter of the bar	65mm
Spindle speed	1800 rpm
Spindle nose	A2-8 (A2-11 optional )
Spindle motor power	7.5kw
X/Z axis position accuracy	0.006mm
X/Z axis repeatability	0.005mm
X/Z axis motor torque	5./7.5 N.m (7/10N.m optional)
X/Z axis rapid feeding speed	8/10 m/min
Tool post type	4-station electric turret
Tool bar section	25*25mm
Tailstock sleeve dia.	Φ75mm
Tailstock sleeve travel	200mm
Tailstock taper	MT5#
N.W.	2850kg
Machine dimension (L*W*H)	2950*1520*1750mm

Standard Accessories
Standard accessories :
Fanuc 0I mate TD control system
inverter main motor 5.5kw
4 station electric turret
200 mm manual 3 jaw chuck
manual tailstock
integrated automatic lubrication system
coolant system
lighten system
Optional accessories :
Servo motor 5.5/7.5kw
Invertor motor 7.5kw
6 station electric turret
8″Non-through hole hydraulic chuck
8" thru-hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8" thru-hole hydraulic chuck( Taiwan)
Steady rest
Follow rest
Auto chip conveyor Company Profile
