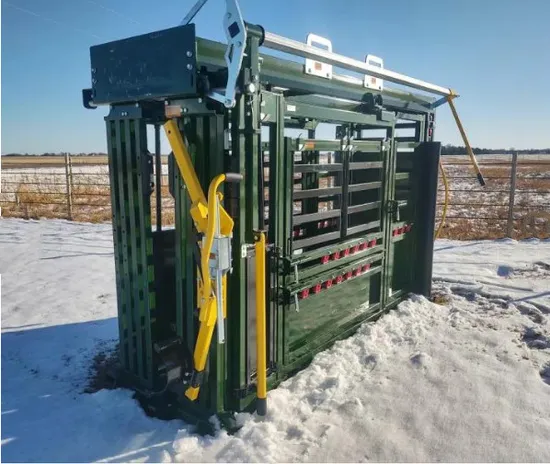

New Design Hydraulic Manual Chute Heavy Duty Powder Coating Hydraulic Cattle Squeeze Chute Manual Cattle Chutes

Product Description

New design hydraulic manual chute heavy duty powder coating squeeze chute cattle handling crate cattle handling cattle crush

No	Details
1	Cattle crush has an internal width 750mm, overall length about 3.05m, 4 doors on the operating side and no doors on the other side. The cattle crush is supplied as 4 pieces kit(headbale, 2 sides & a slide gate)which just pins together.
2	Cattle headbale Pre galvanized, zinc coating 100g/m2 Fully 360 degree welded 2050mm high, 1060mm wide Internal width is 750mm(does not including vertical tube) All the tubes are 50x50x2mm square tubes Galvanized sheet, 1.0mm thick With welded caps 8 U lugs, 100x60x4mm 2 flat feet, 50x110x4mm And pins hang on the lugs
3	Sliding gate Pre hot dipped galvanized,zinc coating 100g/m2 2050mm high, 1060mm wide Frame tube: 50x50x2mm Internal width is 750mm(does not including vertical tube) 6 Rail of 40x80x2mm with the rail evenly spaced Big Pulley: 3 sets per door A small plastic wheel in the bottom Handle:32mm round pipes With welded caps 1 flat feet With 8 U lugs: 100x60x4mm And pins hang on the lugs
4	Cattle panel on one side Pre galvanized, zinc coating 100g/m2 Fully 360 degree welded 2000mm high, 3050mm long. All the tubes are 50x50x2mm With 7 rails, 4 rails with galvanized sheet, 3 rails are not. Galvanized sheet is 1.0mm thick. With caps, lugs and pins
5	Cattle panel gates on the other side Total 2000mm high, 3050mm long. All the tubes are 50x50x2mm Total 4 doors, with spring latched lock Longer door, inertnal wide is 1995mm Smaller door, internal wide is 725mm With caps, lugs and pins

specification 1.Auto lock rear sliding gate innovative silent operation
2.Walk through vet section
3.side door adjustable with long ratchet mechanism
4.dimension:3050x2010x800mm
5.material:anti-bruise 50x50x4 thick square tube
6.Bottom checker plate. 4mm thick
7.with back side vet doors ,can swing in to the crush inside
8.heavy duty auto-locking slam lock on all gates
9.with front door handle bar on front and rear for easy operating
10 infinite lock head bail
11.with safety new design locking system,can garantee the effeciency and safe of cattle and farmer
12.Bottom gates are fully sheeted for animal and operator safety
13.Nearside or offside operation available
14 hot-dipped galvanized surface is available
The details

---
