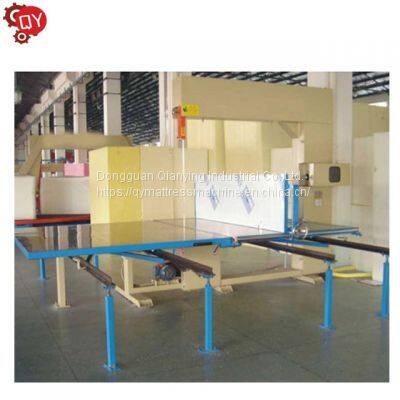

QYLQ-4L Vertical Foam Cutting Machine (Middle/Big)
This foam cutting machine is mostly used for foam rubber s upright slicing and moulded slicing work. This machine may synchronously manufacture all kinds of EVA and pearl rubber sections. The new developed baffle adopts beeline track both side. The movement of baffle will be steadier, and the orientation will be more accurate and the cutting precision will be higher.
ModelQYLQ-4L(Middle)QYLQ-4L(Big)
Inside worktable sizeW1320xL2290mmW1720xL2290mm
Outside worktable sizeW1200xL2290mmW2000xL2440mm
Cutting heightH800/1200mmH800/1200mm
Baffle heightH600/800mmH600/800mm
Cutting thickness3-mm3-mm
Blade lengthL7320/L8100mmL8100/L8900mm
Total power1.34KW1.34KW
Main frame weight1300kg1500kg
Machine external sizeL4500xW4000xH2550mmL4500xW4800xH2550mm
