Product Description
Product Description
Product Description

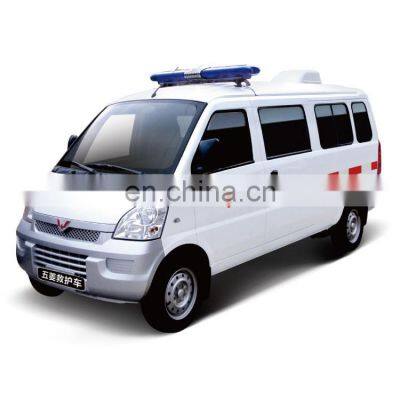

The product has the advantages of stable and high reliability of the whole vehicle, reasonble space arrangement, good waterproof performance, emergency supplies, medical equipment, etc., which can meet the requirements of transporting the wounded in different environments.
Specifications:
| Item | LQG5026XJHLBCY |
| Size | Dimension (mm) | 4490*1615*2100 |
| Treatment Room(mm) | 2490*1410*1365 |
| Wheelbase (mm) | 3050 |
| Weight | Total weight(kg) | 2100 |
| Curb weight(kg) | 1318 |
| Passenger Capacity | 7 |
| Performance | Min Turning Diameter(m) | 11.9 |
| Overhang (F/R)(mm) | 540/900 |
| MIN.Clearance(mm) | 157 |
| Max Speed(km) | 120 |
| Engine | Displacement(ml) | 1485 |
| Model | L3C |
| Rated Power(kw) | 73 |
| Optional Medical Equipment | Turnover Accompanying Bench,sterilizing lamp |
| Transmission | Five Speed |
| Medical Equipment: | Infusion bottle pothook | Yes |
| Alarm lamp and siren | 80W | Two way intercom | Yes |
| Aluminum alloy folding stretcher | 1 Pc | Medical cabinet | 1 Pc |
| Turnover accompanying bench, 4 seats | 1 Pc | Fire extinguisher and bracket | 1 Pc |
| Oxygen bag | 1 Pc | Contaminant tub | 1 Pc |
| Medical kit | 1 Pc | Treatment room windows frosted film | Yes |
| 12V power socket | Yes | Treatment room light | Yes |
| Ambulance car label | 1 set | Oxygen bottle(10L) | 1 Pc |
| Isolated treatment room from cab | Yes | Exhaust fan | 1 Pc |
Production line:
Key components:
Detail:
Our Services
1.WARRANTY
we will provide one year warranty for our truck main parts, such as Engine, Transmission, Axle and Steering system.
2. TECHNICAL SUPPORT
Our rich-experience technical teams are standing by all the time for our vehicle products.
Company Information
The chassis of wuling special purpose vehicle series is from SGMW, a joint venture by GM,Shanghai motors and Wuling motors, it sold 2 million units vehicle all over the world in year 2016.
>>
