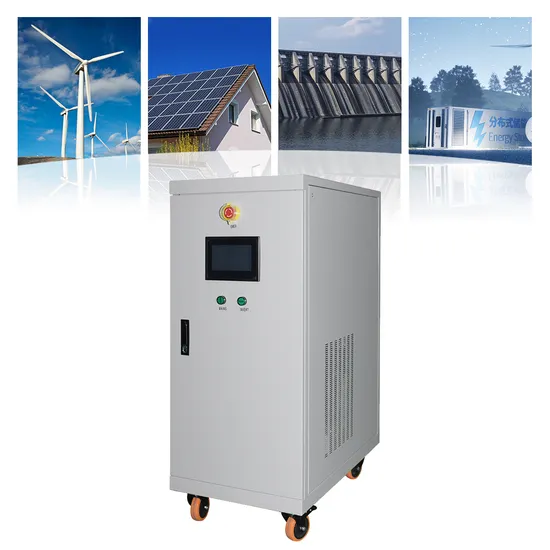

Energy Storage Microgrid Bidirectional DC DC Converter

Product Description

Product Description:
The energy flow of our product is bi-directional, allowing it to discharge from the battery side to the DC grid or charge from the DC grid side to the battery. With fully automatic protection functions for overheating, overload, short circuit, and overcurrent, our product ensures safety and reliability.
Our selection of original imported power devices, along with a fully digital circuit design and industrial-grade chips, ensures the product can operate normally in cold, high temperature, and humid environments. The main circuit features a DSP chip produced by TI of America, Infineon IGBT module, and Infineon movement for driving and protection, further enhancing its safety and reliability.
Our product automatically synchronizes its output with the grid, resulting in low current harmonic content and no pollution or impact on the grid. The closed loop control of grid connected current allows for easy controllability and adjustability. Additionally, the wide input voltage range makes it suitable for different occasions.
Equipped with a comprehensive power protection scheme and perfect self-test and protection function, our product ensures all-round protection. In case of system failure, it will stop working to prevent further damage. The compact circuit structure ensures maximum efficiency of at least 96%.
The protection level of our product can be customized according to the user's needs. It also provides an Ethernet interface and follows the standard Modbus TCP communication protocol for easy connectivity.
Experience the advanced features and benefits of our product, brought to you by Jinan Deming Power Equipment Co., Ltd.

Rated power	250KW
LV rated current	358A MAX:716A
LV voltage range	600-700Vdc
Ripples coefficient	HV side < 1% F.S. LV side < 2% F.S.
Control accuracy	< 1%(Remote and local control, @ full load)
Max. efficiency	96% @ full load
Switching frequency on IGBTs	6kHz
HV Voltage range	900-1314Vdc
Dynamic response time	<2ms
Protection function	Reverse polarity, overheating, overload, overvoltage, overcurrent, undervoltage, etc
Display	Touch screen
Time propagation	200ms
Communication interface and protocol	Modbus_ TCP, RJ45 Modbus_ RTU, RS485
RS485 interface number	one
Working temperature	-10ºC to +50ºC
Relative humidity	0~95%,No condensation
Altitude	≤2000m(More than 2000 meters need to be reduced)
Cooling mode	Air cooling
Noise	≤65dB
Emergency stop switch	yes
Level of protection	IP55
System electrical input	AC230V 50/60Hz 1000W

Rated power	500KW
LV rated current	667A MAX:734A
LV voltage range	680-790Vdc
Ripples coefficient	HV side < 1% F.S.
	LV side < 2% F.S.
Control accuracy	< 1%(Remote and local control, @ full load)
Max. efficiency	98% @ full load
Switching frequency on IGBTs	6kHz
HV Voltage range	900-1314Vdc
Dynamic response time	<2ms
Protection function	Reverse polarity, overheating, overload, overvoltage, overcurrent, undervoltage, etc
Display	Touch screen
Time propagation	200ms
Communication interface and protocol	Modbus_ TCP, RJ45 Modbus_ RTU, RS485
RS485 interface number	one
Working temperature	-10ºC to +50ºC
Relative humidity	0~95%,No condensation
Altitude	≤2000m(More than 2000 meters need to be reduced)
Cooling mode	Air cooling
Noise	≤65dB
Emergency stop switch	yes
Level of protection	IP55
System electrical input	AC220V 1000W

---
