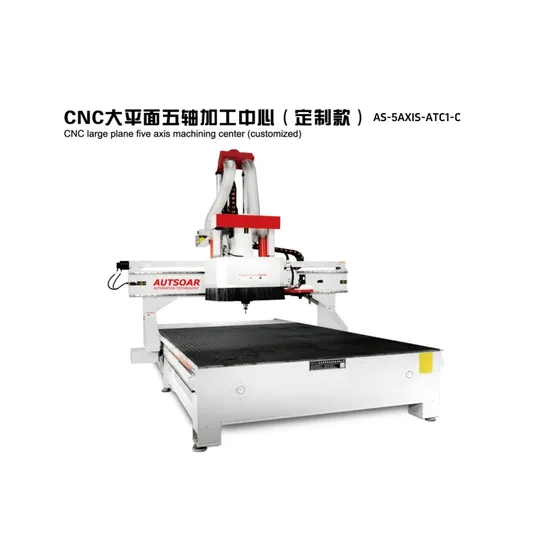

Fast Running Hw-5axis-Atc1-C Machining Centre Furniture Woodworking and Wood CNC Router Machine CNC Machine for Sale

Product Description

Product Parameters

Model HW-5AXIS-ATC1-C
Work schedule	X	2200mm (can process physical width dimensions)
	Y	3050mm
	Z	490mm
	B	±120°
	C	±270°
Maximum moving speed	X	50m/min
	Y	50m/min
	Z	20m/min
Servo motor power	X	1.5kw
	Y	3.0kw
	Z	1.5kw
	B	1.0kw
	C	1.0kw
	P	400.0w
Main spindle speed	3000-18000RPMM
Main spindle power	12.0kw
Working table size	2200*3050mm
Control system	New generation
The transmission structure	Precision ball screw transmission
Vacuum pump power	5.5kw
Vacuum flow	250 cubic meters per hour
Working voltage	AC380V/50Hz
Machine weight	About 4000KG
Overall dimensions(LxWxH)	Length 4600 * Width 3600 * Height 3000mm

Equipment features:
1. The four functions of sawing, planing, drilling, and milling are integrated, which can achieve five axis linkage machining on a flat workbench
The saw shaft can cut at any angle from 0-90 "vertically and horizontally
3- Equipped with an eight station knife magazine
Applications: Wooden furniture industry, furniture decoration, musical instruments, wooden crafts, large panel carving, solid wood furniture, solid wood murals, composite doors, paint free doors, cabinet doors, advertising industry, mold industry, relief, toy production, bedside tables, screen sculptures, etc.
Product Description
Sample
Packaging & Shipping
Certifications
FAQ
1. Question: How to transport the machine?
Answer: We can send our machines by sea, land, and railway
2- Question: Is the quality guaranteed?
Answer: Each device is inspected to ensure quality before being shipped out, and after-sales service is provided in a timely manner
3-Can it be customized?
Answer: If you have special requirements, we can certainly customize the machine according to your requirements to meet your needs.

---
