Cut-off Machines Metal Cut-off Machines

Product Description

Product Description Advantages of this equipment:

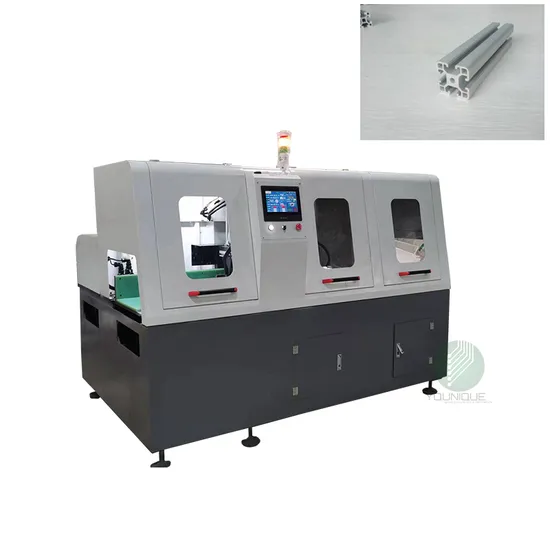

YE-CNC610 aluminum cutting machine, the use of horizontal push feed, compared with the traditional cutting cutting feed speed constant, high surface finish, high cutting accuracy. Ball screw slider with servo motor can quickly and accurately complete the feed/cutting body movement, reaction speed block, accurate positioning accuracy. Cutting height 180 mm width 250 mm, aluminum cutting machine cutting work, the cooling system with automatic saw blades and special oil cooling fluid fixture and product spraying, does not affect the reliable working environment, improve the cutting tool, die service life. Body is made of high qualified steel finishing cutting, convenient adjustment for independent institutions, complete the work more smooth and concentric command, save manual machine time, improve the product percent of pass; Configuration tailing pull function, a former independent rubber roller, prevent scratch FR4 insulation board, such as cutting scratch proof make the machine more stable and efficient; Technical Parameters

Project	Technical Specification	Remark
Operating voltage	380V
Main motor power	7.5KW
Blade size	Φ405-610mm
Speed of mainshaft	3000r/min
Feed servo	1.5KW
Control system	PLC touch screen
Processing efficiency	Cutting feed speed: 0-20mm/s
Machining accuracy	±0.1mm
Processing Materials	Aluminum, copper
Processing technology	Saw cutting
Feeding mode	Servo motor + ball screw slider
Cutting range	Height 180 width 250
Servo feed stroke	The maximum travel time is about 1000mm
Dimensions	Length 1650* Width 2540* height 1700mm
Feeding rack	Custom feed rack	Customized according to customer requirements
Slagging system	About 100L waste bin can be equipped with automatic slagging system
