US$8,000.00-26,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Computerized
Computerized
Certification
CE, ISO9001:2008, SGS
Knife Tool Type
Oscillating Cutting Tool
Safety Device
Infrared Adopted; Sensitive Response; Safe and Rel
Motor
Panasonic Servo 11kw
Maximum Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Cutting Thickness
0.1-20 mm (Subject to Material)
Drive System
Hiwin Linear Rail; Panasonic Motor
Transmission Interface
Ethernet
Transport Package
Wooden Case
Specification
2500*1600mm
Production Capacity
50 Pieces / Month
Product Description

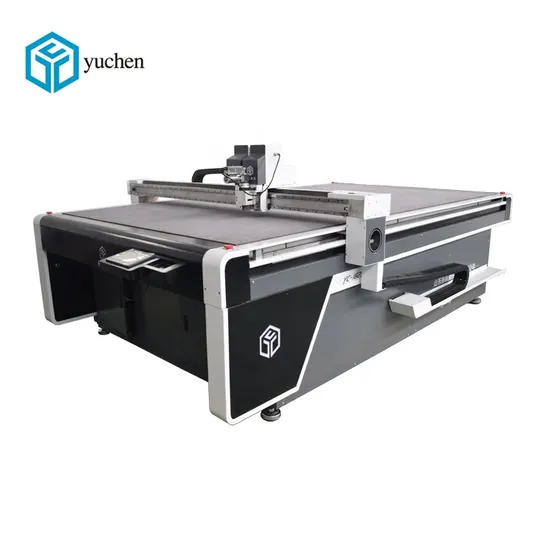

High accuracy Honeycomb Paper / Corrugated paper Knife CNC Cutting Machine YC-1625L
Model: YC-1625L Machine size can be customized Applicable cutting materials: knitted material, tatting material, fur, PU leather, jean demin, canvas, foam, artificial leather, diablement fort, blend fabrics,Cotton & Linen, etc
Application: widely used in garment, bag, belts, footwear, shoes insole, wallets and leatherwear industriy and so on.
Functions: cutting, punching , drawing.
Standard Equipments: oscillating knife Driven rotary punching tool universal cutting tools
Parameter:
Model
| YC-1625L
| YC-1630L
| YC-1625A
|
Working area
| 2500×1600mm
| 3000×1600mm
| 2500×1600mm
|
Operation properties
| continuous cutting with high efficiency, 7*24 with zero downtime
|
Safety device
| Infrared sensor; sensitive response; safe and reliable
|
Maxi cutting speed
| 1200mm/s
|
Translational velocity
| 1500mm/s
|
Applicable materials
| KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc
|
Multifunctional head
| Oscillating cutting tool, Rotary cutting tool,
Punching cutting tool, Drawing tool
|
Cutting thickness
| 0.1-20mm (subject to material)
0.1-10.0mm (subject to the material cutting)
|
Cutting tolerance
| ±0.1mm
|
Transmission interface
| Ethernet
|
Driven system
| Motor: Panasonic
Linear rail: Hiwin
|
Fixed mode
| Vacuum absorb
|
Supply voltage
| 220V 380V±10%,50HZ
AC 220V 380V±10%,50HZ
|
Rated power
| 11KW
|
>>
