High Precision, High Torque and Powerful Jg6916 Floor-Stand Type Horizontal Drill Deep Hole Boring and Milling CNC Machine

Product Description

Product Description

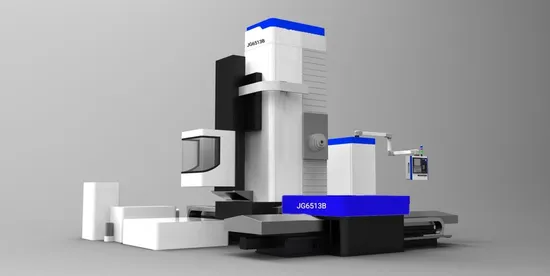

KING STEEL BRAND CNC HORIZONTAL MILLING AND BORING MACHINE
The bed, column, slide, spindle box, and other large parts are made of high-quality cast iron, and the ram made of ductile iron is treated with secondary aging. The overall structural design of the machine is optimized by FEA finite element analysis and has good rigidity. The bed is a closed box structure with reasonable reinforcing rib arrangement and multi-point support, strong rigidity, and good stability; the column is designed with a large cross-section size, and the inner wall of the column is covered with honeycomb reinforcement ribs, contributing to good bending and torsion strength, and the rigidity of the basic parts of the entire machine is good.
1. The JG6513 CNC table-type horizontal milling-boring center is designed and manufactured using the current advanced new technologies such as optics, machinery, electricity, gas, and liquid. The CNC system adopts different brand controllers to achieve four-axis linkage with excellent performance, wide processing range, and high production efficiency. The products are highly mature and reliable in quality, and the technical level is in a leading position in China and are exported around the world.
2. This machine can complete drilling, hole expansion, boring, groove cutting, and plane milling processing in one clamping. It adopts the contour control method to mill inclined surfaces, frame planes, large hole end faces, two-dimensional and three-dimensional curved surfaces, and exterior and interior threads. In addition, the continuous indexing function of the rotary table can continuously process cylindrical surfaces or end faces, expanding the processing range.
3. A variety of functional accessories are optional to expand processing scope and improve processing efficiency.
4. This machine has good rigidity, high precision, easy operation, safety, and reliability and is the optimal processing equipment in various petrochemical machinery, heavy machinery, construction machinery, locomotives and vehicles, mining equipment, large motors, water turbines, steam turbines, ships, steel, nuclear power, environmental protection, and other mechanical processing fields.
Cooperation Brands

Name	Manufacturer
Spindle bearing	S-K-F/F-A-G/NSK
Screw bearing	NSK/FAG
Lead screw	THK/PMI/IF
Linear guide rail	THK/PMI/INNA
Oil cooler	Tongfei/Chngb/Linkwide
Electric cabinet air conditioner	Tongfei/Chngb/Linkwide
Main hydraulic components	Yuken
Primary seal	TRELLBORG
Centralized lubrication pump station	Guangzhou Lube/Baotn
Pneumatic system	SMC
Chip conveyor and cutting cooling filter system	Well-known brand in China
Linear scale	Spain FAGOR
CNC System and Servo Motor	Germany Siemens

Facing Head(Customizable)
Vertical Milling Head(Customizable)
Product Parameters

Product Model			JG6916	Unit
Spindle Box	Boring axis diameter		160	mm
	Diameter of milling spindle end		260	mm
	Taper (7:24)		ISO 50	--
	Tool holder specification		BT50	--
	Pull stub style		P50T-1	--
	Spindle speed range		10~2000	r/min
	Spindle motor power		44	kW
	Maximum spindle torque		3600	Nm
	Maximum axial resistance of spindle		25000	N
	Ram section dimensions		420x480	mm
Coordinate Travel	Maximum travel of column(X)		20000	mm
	Maximum travel of spindle box(Y)		4000	mm
	Ram forward and backward travel(Z)		1000
	Maximum boring axis travel(W)		1000	mm
Feed Speed	Cutting feed speed range	X, Y axis	1~8000	mm/min
		Z, W axis	1~6000	mm/min
	Fast movement	X, Y axis	10000	mm/min
		Z, W axis	8000	mm/min
Positioning Accuracy	X axis		0.02/1000	mm
	Y axis		0.02/1000	mm
	Z, W axis		0.02	mm
Repeatability Accuracy	X, Y axis		0.015	mm
	Z, W axis		0.015	mm
Total Electric Power	--		Approximately 150	KVA
Overall Dimensions	Length × Width × Height (excluding rotary table)		29000×8000×9000	mm
Weight	--excluding rotary table and fixed table		1050	T

Certifications
Our Advantages
I. Short delivery time:II. Jugang has a complete industrial chain production structure from machine tool castings, light machines to sheet metal, and complete machines to ensure delivery and quality.III. Since its establishment, the company has gathered a group of professionals to make more in-depth development with comprehensive thinking. Researchers keep abreast of the latest development trends of products and respond quickly according to customer needs so that the company has strong technical support and a competitive advantage in research and development. Innovate products with the goal of "Your satisfaction is the eternal pursuit of Jugang.".IV. Staff Stability: The machine tool industry is a technology-intensive industry and requires the accumulation of technology. Employees with more than ten years of experience in the company account for 45%.
V. Applied Talents: With a 5-10 year training cycle, the company's senior skilled workers with a working experience of 5-10 years account for 30%, and the turnover rate of first-line skilled workers is low.
VI.Our company introduces standardized operating procedures, uses world-class testing equipment, is equipped with a high-quality workforce, strict quality standards, and the quality can be traced throughout.
FAQ
1. What are your terms of delivery?FOB/FCA/CIF/~.
2. Can we visit your factory before ordering?Sure. All new and old friends are welcome to visit us at our factory. Besides, we can pick you up at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
3. Payment terms: 30% T/T in advance, 70% after inspection before shipping.
4. Warranty:12 months of non-human-made damage for mechanical parts and 24 months of non-human-made damage for the NC controller since the customer received the machine.
5. Engineer travel, installation, and commissioning expenses: The round-trip tickets, accommodation, and labor costs are all offered by the buyer.
6. Installs and debugs the personnel and days: Approx. 3 persons, within 7 days (depends on the actual situation).
7. More functions and machine size can be customized according to the customer's requirements.

---
