| US$2,000.00-8,000.00 | 1 Piece (MOQ) |

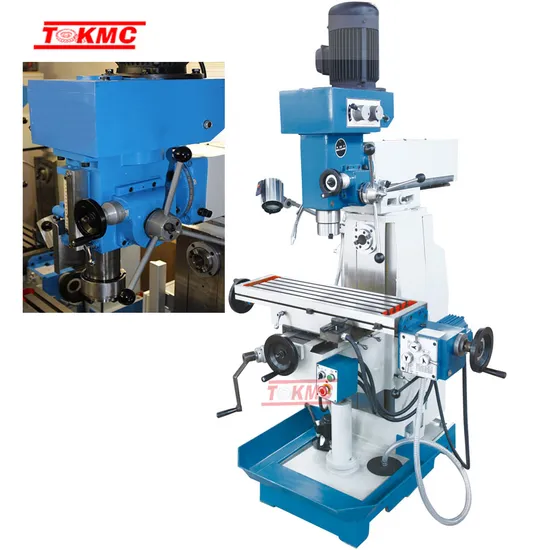

| Item | ZX7550Z |
| Spindle taper | ISO40 |
| Distance from spindle to table | 90-420mm |
| Spindle speeds | (8step)90-2000r.p.m(V) |
| Spindle travel | 120mm |
| Max.drilling capacity of auto-feeding | 50mm |
| Head movement | ±45° |
| Table size | 800×240mm |
| Table travel(horizontal/Cross/Vertical) | 400/230/350mm |
| T-slot number/Width/Distance | 3/14mm/60mm |
| Horse power for main motor | 2.2kw |
| X axis driving motor | 370W |
| Coolant pump power | 40W(12L) |
| Overall dimension | 1290×1220×2100mm |
| Packing size | 1140×1220×2220mm |
| N.W./G.W. | 820/900kg |
