Stainless Steel Mixing Tank Emulsification Tank

Product Description

Mixing Speed Stainless Steel Mixing Tank with Adjustable
1. Made of stainless steel 304/316
2. Mixing milk, juice, or any other viscous liquid
3. Customized mixing tank capacity
Mixing Tank <mixing tanks> mainly made of stainless steel, used for mixing different liquid together.
Also, you can use this mixing tanks to mix liquid and power to make a mixture.
Mixing tanks can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the mixing tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special request, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request.

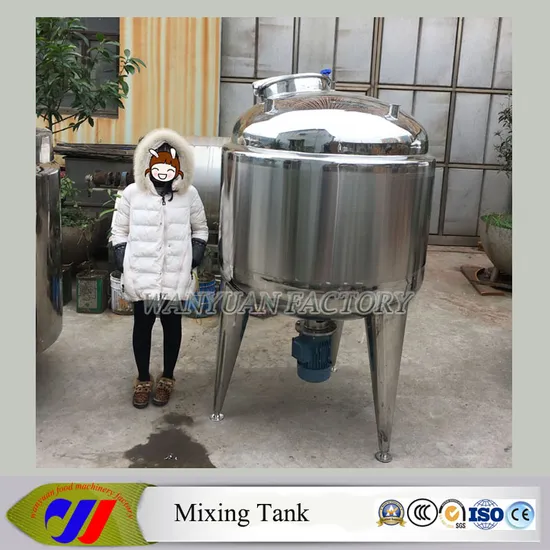

Mixing tank picture one:
Mixing tank picture two:
Details of mixing tank:
Wenzhou wanyuan food machinery factory mainly produce stainless steel mixing tanks for milk, juice, beverage, cosmetic, detergent as well as chemical product.
Wenzhou wanyuan food machinery factory--Mixing tank
Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
The below is Mixing tank specifications:

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60

---
