Automatic 5gallon Bottle Drinking Mineral Pure Water Filling Machine

Product Description

Product Description

Automatic 5gallon Bottle Drinking Mineral Pure Water FillingMachine
Description of Machine
LK-90 blow molding machine is especially used to produce 3 gallon to 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
Perfect function with economic investment.
Small size and compact construction with no space waste.
Easy to operate and maintain, operation by one person.
Saving power and uneasy to worn out, Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.

Main parameter:
Model	LK-90
Container	Product material	PET
	Volume	10L-25L(3-5Gallon)
	Theoretical output	90PCS/H
	Preform length	15mm-460mm
	Preform inner diameter	φ5mm-200mm
Moulding	Max.mould plate Dimenstion(L x W)	420x500mm
	Max.mould thickness	400mm
	Clamping force	330KN
	Mould opening stroke	380mm
Machine size and weight	Main machine (L x W x H)	218*77*196cm
	Main machine weight	1000Kg
	Heater (L x W x H)	237*68*165cm
	Heater weight	380Kg
	Power	40kw

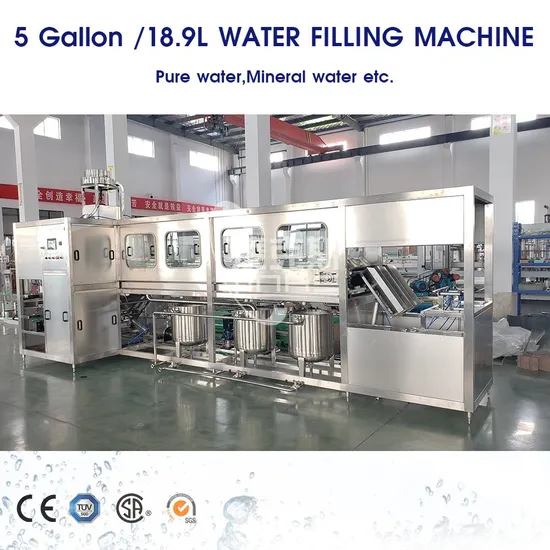

Picture of Machine
Packaging & Shipping
Wooden Package Standard Export Request
FAQ
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
3)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
4)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
5)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

---
