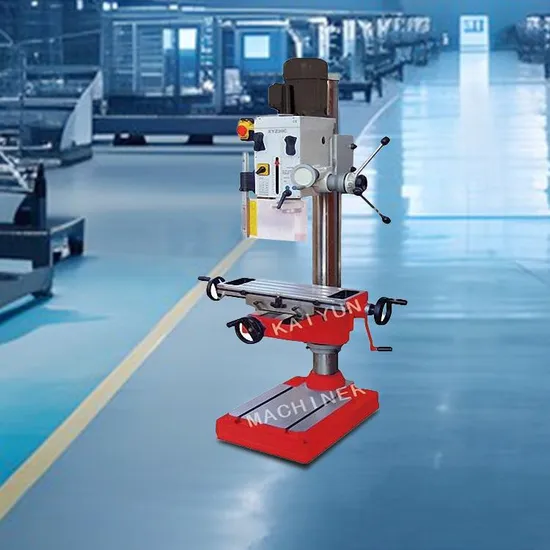

Mini Pillar Type Household Manual Milling Drilling Machine (KYZ30/KYZ30C)

US$1,168.00-1,410.00 3 Sets (MOQ)

Basic Info.

Model NO.
KYZ30/KYZ30C
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Max. End Milling Capacity
32mm
Taper of Spindle Bore
Mt3 or Mt4
Spindle Stroke
120mm
T-Slot Width
14mm
Diameter of Column
115mm
Motor
1.1kw
Transport Package
Wooden Case
Specification
KYZ30/KYZ30C
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month

Product Description

Specification

Model No. 		KYZ30 KYZ30C

Max. drilling capacity
 32mm(MT3) 32mm(MT3)
40mm(MT4) 40mm(MT4)

Max. end milling capacity 		32mm 32mm

Taper of spindle bore		 MT3 or MT4 MT3 or MT4

Spindle stroke 		120mm 120mm

Headstock swivel left & right 		±90° ±90°

Step of spindle speeds		 12 12

Range of spindle speeds		 75-3200mm 75-3200mm

Table size 		540X470mm 600X190mm

Table travel 		X-360mm Y-190mm

T-slot width		 14mm 14mm

Table stroke up & dowm 		620mm 520mm

Diameter of column		 115mm 115mm

Max distance spindle to table		 715mm 610mm

Distance between spindle to column		 272mm 272mm

Max distance spindle to base		 1180mm 1180mm

Motor		 1.1KW 1.1KW

Packing size		 740X720X1830mm 820X720X1830mm

Net weight 		320kg 340kg
Optional Accessories

Power feed		 1 pc

Cooling system		 1 set

58pcs clamp kits		 1 set

Milling vise		 1 pc

Drilling vise		 1 pc

Keyless drill chuck		 1 pc

Features
1.Milling, drilling, tapping boring and reaming;
2.head swivels 360 degree. Table swivelled 180 degree and tilted 45 degree;
3.Super high colum;
4.Equipped with cross table or Big&wide table; Cross table may be elevated up and down by geared crank handle;
5.Micro feed precision;
6.Heavy-duty tapered roller bearing spindle;
7.High precision ground spindle and larger quill etc.
