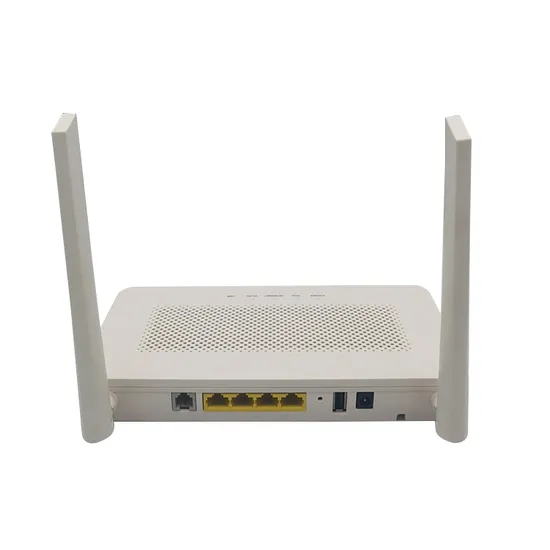

Epon Gpon ONU Eg8145V5 Dual Band WiFi Router Fiber Optical Equipment

Product Description

EG8145V5 GPON XPON ONT ONU 4GE+1TEL+WIFI(5.8G/2.4G) Dual band
Functional Feature
GPON features:Secure authentication mode: SN, password or SN+password,Upstream/downstream FEC
Voice features:SIP or H.248 protocols,Media stream and signaling stream separation
Multicast features:
IGMP V2&V3 Snooping,GMP Proxy
Wi-Fi features:
802.11b/g/n certified by the Wi-Fi Alliance ,Routing features,8 WAN interfaces,NAT function,Internet, IPTV and VoIP services are automatically bound to ONT ports,Virtual Server, Port Trigger,DMZ and DDNS
Security features:
SMAC/IP/URL filter,Anti-DOS Attack,IPv6 features(for HSI and IPTV),IPv6/IPv4 dual stack,DS-Lite,MLD snooping
Maintenance features:
Web local management,Remote management through OMCI,Remote management through TR069,Optical power monitoring,Loop-line test of POTS ports,Call emulation,PPPoE dialup emulation,DHCP emulation
Features:
(1)In compliant with IEEE802.3ah Standard and CTC2.1/3.0
(2)Up to 20KM transmission Distance
(3)Support VLAN and IGMP
(4)Support port isolation between different ports
(5)Integrated OAM remote configuration and maintenance function
(6)Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology
(7)EMS network management based on SNMP ,convenient for maintenance
(8)Full speed non-blocking switching.
(9)Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
(10)Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
(11)Support auto polarity detection of Ethernet ports (AUTO MDIX).
(12)Integrated IEEE802.1p QoS with four level priority queues.
(13)Support IPv4 IGMP snooping and IPv6 MLD snooping.
(14)CATV Specification
Product Specification

Products Name	Gpon ONU
Pon TYPE	G/EPON ONU or GPON ONT
Fuction optional	FE/GE Lan port ,WIFI/ FXS/POTS/,CATV/RF..Ect..
Lan PORT	10/100/1000base-tx; Interface: RJ45
PORTs	PON: SC/PC
ETHERNET	•10/100/1000M auto-negotiation •Full/half duplex mode •RJ45 connector •Auto MDI/MDI-X •100m distance
Business	•Layer 2 wire speed switching •Support VLAN TAG/UNTAG,VLAN conversion •Support Port-based speed limitation •Support Priority classification •Support storm control of broadcast •Support RSTP
Network Management	•Support IEEE802.3 QAM, ONU can be remotely managed by OLT •Support Remote management through SNMP and Telnet •Support Be Remote updated by OLT
Physical	Dimension: 130mm X 100mm X 37mm;
	Weight: 250g
	Temperature: 0~60°C; Relative Humidity: 10~90%
Power Adapter	Input: AC 110V~ AC 265V; Output: DC12V/0.5A
Consumption	<5W

FAQ Q1:What is your main products? A:Our company, Queenton supply ONUs, OLTs, Business Board, and fiber optic accessories, like fast connectors, adapters, splitters, drop cable, patch cord.
Q2:What is your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay thebalance.
Q3:Can we get free samples?
A:Sorry, it is not available for initial order.
Q4:is your terms of trade?
A: We offer EXW,FOB,CIF and CNF or as your request.
Q5:How long is the warranty?
A:ONUs and OLTs have 1 year warranty.
Q6:How about your delivery time?
A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.Large quantity will delivery faster.
Q7:Do you test all your goods before delivery?
A:Yes, we have professional engineer to test all devices before shipping.
Q8:How do you make our business long-term and good relationship?
A: 1. We keep good quality and steady price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
