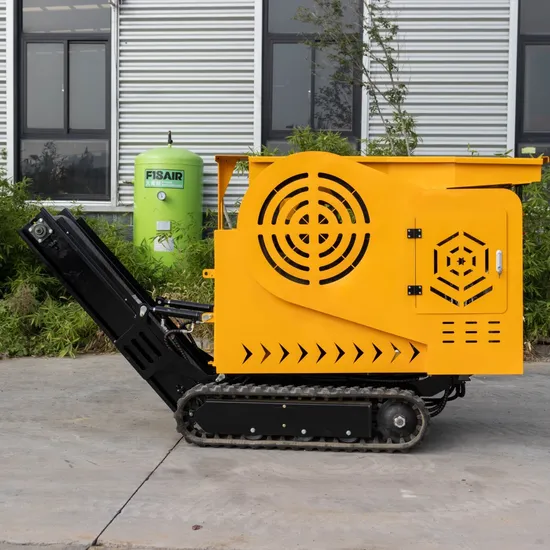

| 1,Equipment Spcification | |
| working size(mm): | 3200×1000×1620 |
| Vertical plate inner width(mm) | 380 |
| Transportation dimensions(mm): | 2100×1000×1750 |
| Total outerwidth ofthe protective cover(mm): | 960 |
| Crawler model(mm): | 180×72×41 |
| Bearing wheel diameter(mm): | 126 |
| Number of heavy wheel bearings(): | 6 |
| Feedportsize(mm): | 220×350 |
| Maximumfeed size (mm): | 200 |
| BarentVolume(m3): | 0.25 |
| Stacking height(mm): | 700-1150 |
| Feeder conveyor(mm): | 1500×500 |
| Graofrange(mm): | calibre1.5-6CM |
| travel speed(km/h): | 0-3 |
| Track specifications: | Rubber Crawler |
| Production capacity (T / h ton / hour) | 2T-5T/h |
| Delivery BeltWidth(mm) | 400 |
| 2. Operation form and the parameters of the main accessories | |
| Equipment Operation Methods | Manual hydraulic valve |
| Way to walk | Hydraulic power tracked type |
| Walking motor model | 6K-395 |
| ContinuousTorque (N.m): | 850 |
| Hydraulic pump specifications: | PGP5108 |
| Model of the conveyor mechanism motor: | BMER-300 |
| Conveyor lifting mode: | Manual operation of the hydraulic lift |
| Lubrication mode of jaw breaking mechanism | Grease |
| Adjustment method of track tightening | mechanical |
| 3. dynamical system | |
| Standard gasoline engine: | Runtong R500-V2-18HP |
| output powermax | 13KW/3600r/min |
| torque outputmax | 28N.m/2500r/min |
| fuel tank capacity /L | 6.5 |
| 4. Oil product type and dosage | |
| Fuel tank volume / L | gasoline engine6.5L |
| Oil volume / L | 1.0L |
| Hydraulic oil tank volume / L | 35L 32#/46#hydraulic oil |
