Cylinder Proximity Switch Magnetic Sensor

Product Description

Feature. A magnetic switch is employed to recognize and relay the presence of a magnetic field within a determined threshold. Thanks to superior operating ranges, a reduced footprint, precise switching points, and minimal energy consumption, offer the ideal solution in systems spanning the automotive, industrial, and commercial sectors.
1.Compact dimensions;
2. Easy screw mounting;
3. Solder reflow cable;
4. Thermoset overmolded material;
5. Ideal sensing point is marked;
6. Ideal sensing point can be customized;Application.
Security; ·Position Sensing; ·Moible phone; ·office equipment; ·Industrial Control;Product ParametersSensor solutions + wire harnesses: tailor made to your requirements including RAST-Assembly.

HALLTYPE		Latching
WIRES		2-Wire
BON/BOFF	mT	12.0 / -12.0
SUPPLY CURRENT	mA	5
SUPPLY VOLTAGE	V	3.0 to 24
OPERATING TEMPERATURE	°C	-20 to +85
HOUSING MATERIAL		PA6+GF
CABLE TYPE		UL1007/1569, AWG 24
COLOR		BLACK
DIMENSION	mm	23*14*6

Reed Switch Parameter Table

Contact Type		Normally Open	Normally Open High Voltage	Normally Closed	Change Over
Pull In AT-Range		10 - 40	10 - 40	10 - 40	10 - 40
Contact Rating	VA/Watt - max.	10	10	5	5
Switching voltage	Vdc - max.	200	300	175	175
	Vac - max.	140	265	120	120
Breakdown Voltage	Vdc - min.	250	400	200	200
Switching Current	Adc - max.	0.5	0.40	0.25	0.25
	Aac - max.	0.35	0.30	0.18	0.18
Carry Current	Adc - max.	1.2	1.40	1.5	1.50
Contact/Initial Resistance	Ω - max.	0.2	0.2	0.2	0.2
Insulation Resistance	Ω - min.	1010	1010	109	109
Contact Capacitance	pF - typ.	0.3	0.2	0.3	0.3
Operating Temperature	°C	-40 to +105	-40 to +105	-40 to +105	-40 to +105
Operate Time	ms - max.	1.0	1.0	3.0	3.0
Release Time	ms - max.	1.0	1.0	3.0	3.0
Shock 11ms 1⁄2 sine	G - max.	100	100	50	50
Vibration 50-2000 Hz	G - max.	30	30	30	30

Product details.

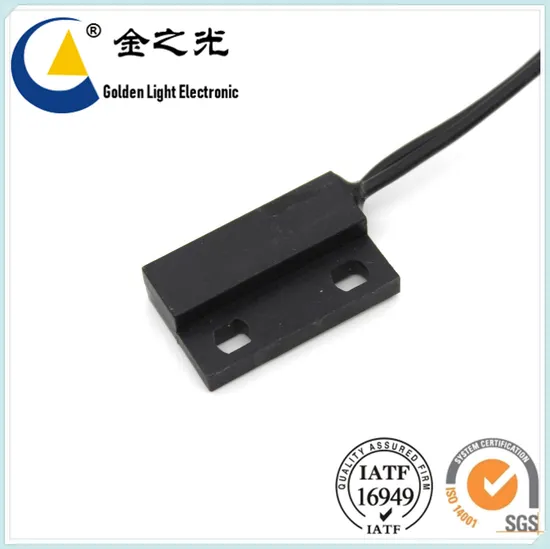

This type magnetic position switch is configured as a normally open switch. It is surface mounted by fixing screws for various industrial applications. Cable wiring is positioned to the right of the package. Also can be customized.
About us--Over 13 years rich experience on sensors & car parts.GLE electronic technology Co., Ltd,is a high-tech enterprise specializing in the development automobile components such as Reed switchs, Hall sensors, with Injection molding, thermosetting material housing, stamping, precision hardware processing,etc.
With over 10 years rich experience, we not only work closely with our clients with a focus on quality product development, but also provide customized service for satisfying different requirements.
At GLE, we believe in our strength and believe in your creative vision, so by choosing us as your manufacturing partner, you will have a ture partnership that will see that beautiful future come to life.
- Factory Showprecise quality test & guarantee.
--ZEISS--Coordinate Measuring Machines (CMM)
--perfectly matched measuring systems with the latest technology that combine user-friendly applications with highly precise measurement results.
--speed up quality control of injection molded parts
--meeting the increasing requirements for quality assurance of products.- Certification
- Our Clients- Our Culture.
- Our Advantages
1: Your inquiry related to our products or prices will be replied in 12 hours.2: Protection of your sales area, ideas of design and all your private information.
3. Over 10 years rich experience, confirm cost savings and waste minimization.4: Best quality and competitive price.Packaging & ShippingProducts are available sent by DHL,FEDEX,UPS, EMS,AIR etc.
- FAQ
Q1:Are you a trading company or manufacturer?
A: We are manufacturer.
Q2:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
Q3:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
Q4:Can you provide help for technical issues?
A:Yes,we have more than 10 years of research and development in the electronic industry. If you need technical help in the purchase process, please feel free to contact us.
Q5:About payment?
A: Price term of EXW,FOB,CFR,CIF are acceptable.
For bulk order, 50% deposit and 50% balacne before shipment.
Q6: What is your lead time?
A: Small order, we can finish with 5 or 7 days;
Bulk order, we can finish with 7 to 20 days
Contact with us for more info. Tks.
