Easy Installation Hydraulic Vertical Disability Platform Lifts on The Wall

Product Description

Easy Installation Hydraulic Vertical Disability Platform Lifts On The Wall

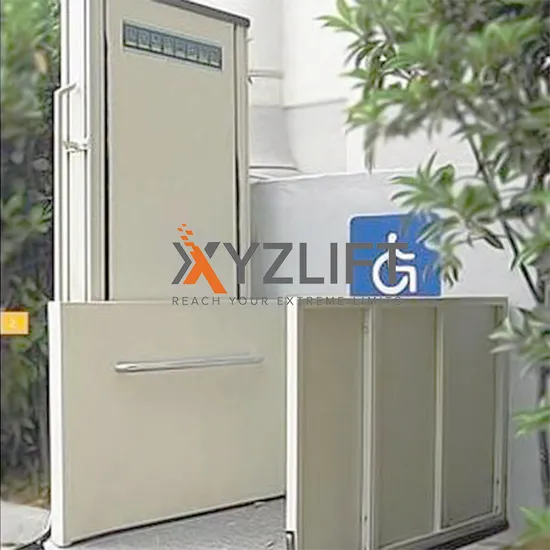

XYZLIFT-Vertical platform lift is built with the end user in mind. Passenger comfort, simple-to-use operation and safety features allow people with limited mobility to operate the lifts independently or with assistance from an attendant. It is designed to provide cost-effective access to raised porches, decks, and other elevated areas for residential and commercial applications. Can easily installed in private homes or public buildings. Ranges of VPL
Our VPL offers models to suit different levels of budgetary requirements, accommodating a variety of needs for both indoor and outdoor installations. Prices increase from left to right. Contact us with your choice, and we will provide a quote within 8 hours.
Product Parameters
MODEL XYZVPL-2

Load capacity	250 to 800kgs
Platform usable size	1430*1000mm. Customizable Dimensions to Suit Your Installation Space
Travel height	up to 15 meters
Normal speed	60mm/s
Standard	EN81-41

Safety Components
Our vertical platform lift combines quality and safety across its design:
1. Guide Rail: Made from aluminum meeting national standards, these rails ensure durability and quality.
2. Platform: Features an anti-slip surface, a 1.2m guard gate for safety, and an obstacle-detecting safety panel.
3. Hydraulic Cylinder: Uses NSK seals and includes an explosion-proof valve for reliability.
4. Motor: Silent operation with a soft lift valve for smooth stops, enhancing comfort.
5. Control System:Easy-access mounted controllers with emergency stops and speed adjustment through frequency control.
6. Limit Switch: OMRON switches for precise floor detection, with extra safety at the top.
7. Safety Brake:Prevents sudden drops in case of cylinder failure, ensuring safety.

Options for Better Experience
Inform us of your choices among these options, noting some are free and others are paid. Contact us now to get a quote!
1. Choice of entrance/exit direction
2. Manual or automatic landing door
3. Finish in RAL colors or stainless steel
4. Lift with floor hole cover
Common installation scenarios
From our years of experience interacting with clients, we've identified 4 common installation scenarios. Our technical team offers 3D designs for pre-production confirmation tailored to the specific installation site, along with detailed installation instructions and guidance for that particular location.
Simple Installation Steps
Our vertical lift platform is pre-assembled before delivery, requiring only fixation. Here's a 3-step guide to installing a vertical lift platform:
1. Secure the Lift to the Ground: Use bolts to firmly fix the lift on the ground.
2. Attach the Platform to the Wall: Fix the vertical lift platform to the wall with bolts.
3. Power Connection: Connect the lift to the power supply.
If you encounter any issues during installation, our experienced technical team will resolve them within 2 hours.
Project Show
Our VPL (Vertical Platform Lift) is suitable for both indoor and outdoor use. Whether it's a house, villa, bank, factory, or warehouse, we can solve the transportation problems between floors. Contact us to get a design plan and quotation that suits you.
Package & FAQ
Q1. What details are required for specifying a vertical lift platform?
A1. To precisely tailor a vertical lift platform to your needs, we need the details below:
Platform Size: The standard is 1430*1000mm. If you have a shaft, we'll design the platform size to match.
Travel Height: The vertical distance between floors
Loading and Unloading Directions: Specify access from one side, opposite sides, or three sides.
Additional Equipment: Any optional features you require, like a glass shaft, landing door, etc.
Q2. How many floors can a vertical lift platform go?
A2. Our vertical lift platform can travel up to 16m, covering 5 floors.
Q3. What color options are available for the vertical lift platform?
A3. Just let us know your preferred RAL color number, and we'll customize the platform's color to match your choice.

---
