| US$4,800.00-5,000.00 | 1 Piece (MOQ) |

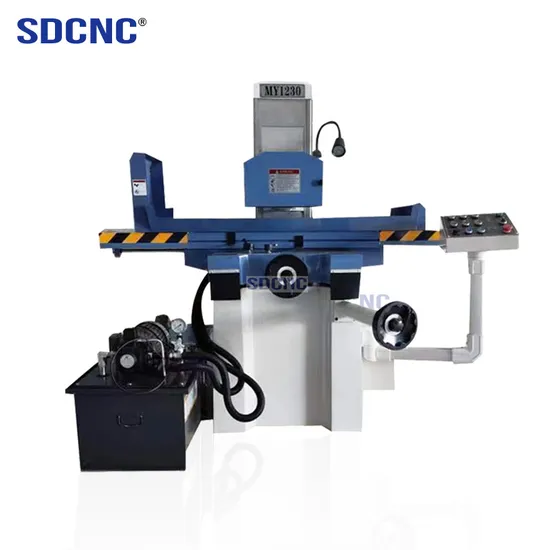

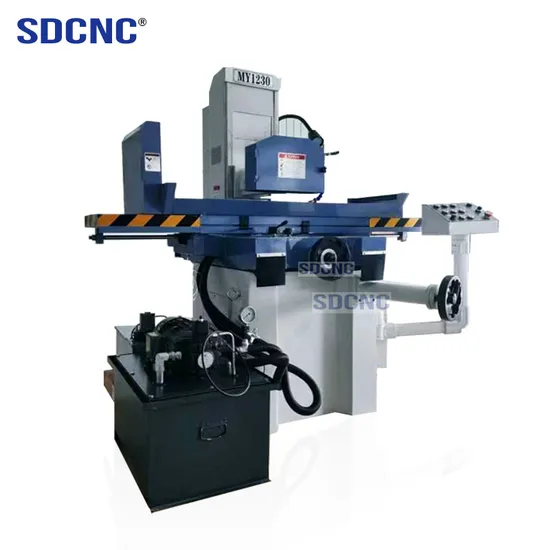

| Specifications | Units | MY1230 | ||
| workbench | Worktable size (L * W) | mm | 750×300 | |
| Max. travel of table | mm | 780×320 | ||
| Table T slot (slot number x slot width) | mm | 1×14 | ||
| Grinding head | The grinding wheel size (o. d * w * i. d.) | mm | Φ300×30×Φ76.2 | |
| Distance spindle center line to working table | mm | 520 | ||
| Grinding wheel speed | 50HZ | r/min | 1450 | |
| 60HZ | r/min | 1680 | ||
| The amount of feed | Table longitudinal (left and right) speed | m/min | 3-20 | |
| Transverse (front and rear) feed handwheel feed | Continuous (stepless) | mm/min | 600 | |
| Intermittent (stepless) | mm/times | 0-6 | ||
| Handwheel per turn | mm | 4.0 | ||
| Handwheel per lattice | mm | 0.02 | ||
| The vertical (up and down) feed handwheel feed | Handwheel per turn | mm | 2.0 | |
| Handwheel per lattice | mm | 0.01 | ||
| Grinding head up and down is fast lifting speed (approximate value) | mm/min | 360 | ||
| Hydraulic system | Hydraulic motor | kw | 2.2 | |
| working pressure | Mpa | 4 | ||
| Fuel tank capacity | L | 100 | ||
| Maximum flow rate | L/min | 20 | ||
| Motor power | Spindle motor | kw | 2.2 | |
| Cooling motor | W | 40 | ||
| Elevator motor | W | 120 | ||
| working accuracy | The process surface of the base level of the parallel degree | mm | 300:0.005 | |
| | Surface roughness | μm | Ra0.32 | |
| Machine weight | Net weight | kg | 1400 | |
| Gross weight | kg | 1530 | ||
| External size (L * w * h) | mm | 1960×1480×1850 | ||
| Packing size (L * w * h) | mm | 2000×1640×2020 | ||
