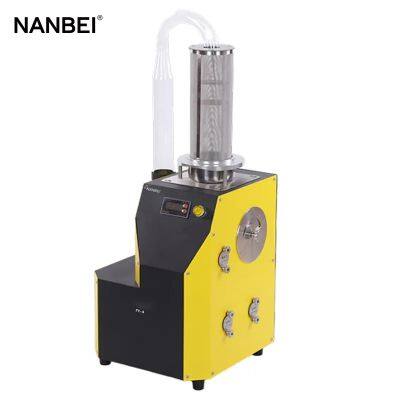

Laboratory Seed Air Separator Seed Blower
FY-4 seed wind cleaning instrument is applicable to screening small particle seeds such as forage, flowers, sesame,
rape, cabbage, pinecone, celery, and chicory. It can separate impurities in seeds, light and shriveled seeds from
pure seeds to obtain pure seeds. The instrument is applicable to variety tests and small sample separation and
cleaning of seed subsidiaries, agricultural science institutes, and inspection units.
Instrument principle
The seed air separation purity instrument is a specialized instrument developed using microelectronic control
technology based on the aerodynamic behavior (floating speed) of material particles in the airflow, which is
used for seed purity testing. It can separate impurities and light, shrunken seeds from pure seeds.
Functional characteristics
1. The shell of the FY-4 seed air separation purity instrument is made of all metal, meeting the strength
requirements and being sturdy and durable;
2. Novel and beautiful appearance, superior performance; Low noise, long service life, energy-saving,
safe and reliable; Small size, easy to transport and move;
3. The pipeline is made of high-quality glass tube material, and the operation process is visualized;
4. Automatic timing control of the instrument, without the need for dedicated personnel to monitor,
easy to operate;
5. The wind speed can be continuously adjusted through the scale knob;
6. The ventilation performance of the mesh hood ventilation pipe is good. Through glass ducts and
mesh ventilation pipes, impurities enter the debris cup and separate from the seeds. The filter tube
hanger of the mesh ventilation pipe can prevent impurities from rebounding.
Specification
Product name
| Seed air separator seed wind cleaning instrument Seed blower
|
Max air flow
| 0.018m3/min
|
Max wind pressure
| 38pa
|
Max wind speed
| 7.80m/s
|
Noise
| ≤70dB
|
Power
| 220V 50HZ,90W
|
Size
| 350mm*350mm*900mm
|
Timer
| 0-9999min
|
Motor speed
| 2500 r/min
|
Cup mesh
| 40
|
