Product Display Abrasive Shot Blasting Machine

Product Description

Product name: product display abrasive shot blasting machine
Shot Blasting is a versatile machine utilized for larger-sized medium or heavyweight casting, forging, heat-treated work, welded, and bolted structures. Elements such as engine blocks, transmission housings, head wheels, crankshafts, etc can be blast cleaned. The Shot Blasting Machine stands high on functionality, durability, effectiveness, finishing, and has a long operational life. Our machine is hence acknowledged and demanded by our customers in the global markets among our competitors.
Features of Table Type Shot Blasting Machine Rustproof body Strong construction Smooth operation
Specification of shot blasting machine:

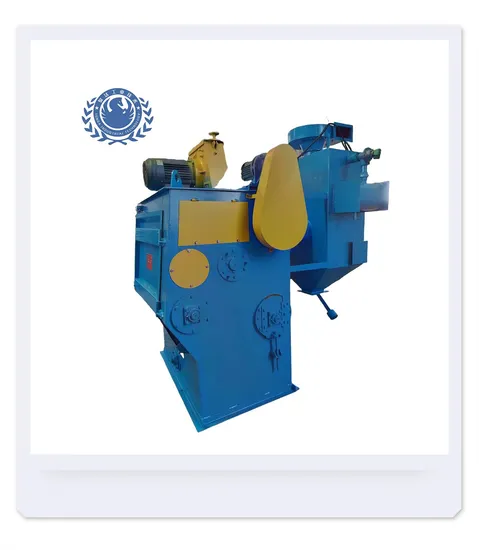

Junda Crawler Type Shot Blasting Machine
Item	specification
Model	JD-Q326
Processing capacity	≤200KG
Maximum weight per workpiece	15KG
Maximum load capacity	200KG
Steel shot diameter	0.2-2.5mm
End disc diameter	650mm
Track aperture	10mm
Track power	1.1Kw
Track speed	3.5r/min
Sand blasting rate	78m/S
Shot blasting quantity	110KG/min
Impeller diameter	420mm
Impeller speed	2700rmp
Impeller power	7.5Kw
Lifting capacity of hoist	24T/h
Lifting rate of hoist	1.2m/s
Hoist power	1.5Kw
Separator separation amount	24T/h
Separator air volume	1500m³/h
Main ventilation volume of precipitator	2500m³/h
Dust collector power	2.2Kw
Dust collector filter material	Filter bag
First loading steel shot quantity	200KG
Throughput of bottom screw conveyor	24T/h
Compressed air consumption	0.1m³/min
Gross weight of equipment	100KG
Equipment size length, width and height	3792×2600×4768
Total power of equipment	12.6Kw

We can design and manufacture all kinds of non-standard shot blasting machines according to customer different workpiece detail requirement, weight and productivity.
Details of shot blasting machine:
This machine is mainly composed of blasting chamber, blast wheel, bucket elevator, screw conveyor, separator, dust removal system, electrical system, etc.
These pictures will better help you understand shot blasting machine.
Advantages of shot blasting machine
We are the leading Manufacturers of Sand Blasting Machine, Shot Blasting Machine, grit blasting machine that is completely innovative in all aspects. it has been extensively designed with airless, automatic as well as simple handled machines for more application. It is most suitable for the big to small foundry industries in a more innovative way.
Application:Cleaning of castings and forgings. Descending and descaling of casting and forgings. Shot peening of heavily stressed components. Removal of heat-treated scales. Aesthetic finishing of tint part of aluminum, zinc, and alloy steels. Preparation of surfaces for protective coating.
Certification of shot blasting machine:
We owned 2 work shop area for production .ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
Packing & Delivery:
Installation and Warranty:
1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and meals, etc Customer needs arrange 3-4 skilled worker and prepare installation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents:
including foundation drawings, operating manual , electric wiring diagram, electric manual book and maintenance book, etc.
Company Profie:
Jinan Junda Industrial Technology is a manufacturer for sandblasting Machinery & Shot Blasting Machine since 2005.
Products cover sandblaster , sandblasting machine , sandblasting cabinet , Dust Collector and full-line Shot Blasting Machines.
We owned 2 work shop area for production .ISO9001 is achieved.
Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer,
our staff and our company.
Choose Junda,Get factory price and reliable shot blasting Machinery!
FAQ:
Q1:What is basting speed of tumble belt shot blasting machine ?
A:3-5 min per one batch.
Q2:What is max loading weight of tumble belt shot blasting machine ?
A:200 to 800 kgs.
Q3:What kind of abrasives are used for tumble belt shot blasting machine ?
A:Steel shots, steel grits or steel cut wire.
Q4:Is it necessary to dig pit for installation of tumble belt shot blasting machine ?
A:No
Q5:Is it possible to install tumble belt shot blasting machine by buyer himself ?
A:Yes
Q6:How many operators are needed to run tumble belt shot blasting machine ?
A:1 operator.
Q7:Is the automatic and pneumatic lifting door available ?
A:Optional.
Q8:Is the lift loading bucket available ?
A:Optional.
Q9:How to choose right belt material, rubber or metal?
A:Metal belt normally for hot casting or heavy duty work pieces. Rubber belt normally for normal temperature and common weight work pieces
