Throat Depth 360mm Factory Direct Bending Machine Precision Bending Electric Press Brake

Product Description

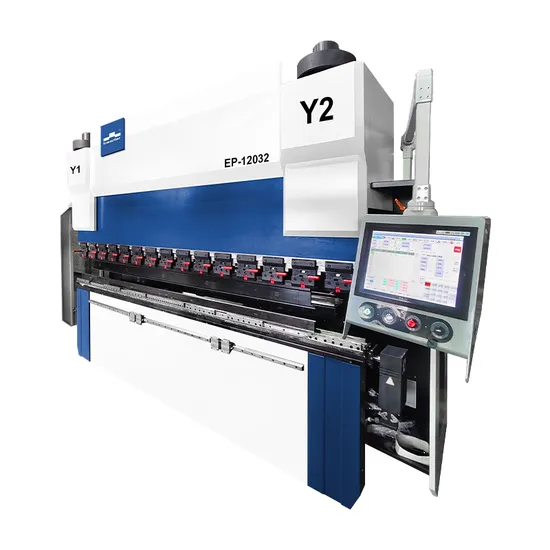

Product Description • CNC press brake, 120 ton 1200KN
• Dual servo motor Drive-Technology provides high precision bending results.
• 100% Pure electric power, with no oil. • Up to 50% less energy consumption compared to ahydraulic press brake. • Up to 35% faster compared to a hydraulic press brake. • High efficiency and precision. • High bending speed and less noise. • Full bending length between side frames. • Less maintenance cost.
• Eco friendly. • Friendly user interface. Product Parameters

Model	EP-12032
Bending pressure	120T
Bending length	3200mm
Distance between columns	2720mm
Throat depth	360mm
Opening height	450mm
Slider tilt	±30mm
Y-axis travel	200mm
X-axis travel	600mm
R-axis travel	200mm
Z1/Z2-axis travel	2500mm
Weight	9000kg
Dimensions	3912*1603*2650mm
R-axis motor	750W
X-axis motor	750W
Y-axis motor	29.7KW
Z-axis motor	400W

Detailed Photos
FAQ 1. Who are we?
A: We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%),
WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 21-50 people in our office. 2. Which payment terms you can accept? A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation. 3. Which shipping way can you provide? A: We can provide shipping by sea, by air, by express and etc according to customer requirements. 4. How to place order? A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly. 5. Do you have an inspection procedure for the product? A: Yes, We have a strict inspection of product quality and packing. 6. Can we be your agent? A: Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

---
