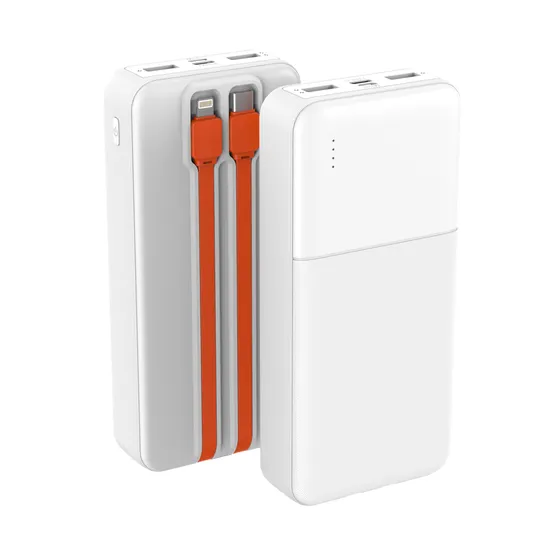

Factory OEM hot sale fast charing large capacity power bank with cables
| Seri | Item | Specification | Remark |
| 1 | Nominal capacity | 10000mAh | 0.2C discharge after full charge to cut-off voltage capacity |
| 2 | Standard input voltage | 4.8-5.5V | |
| 3 | Fast charge input voltage | 8.8-12.2V | (Protocol support to 9V) |
| 4 | Input current | 2400mA | Continuous charging current |
| 5 | Charging cut-off current | ≤60mA | |
| 6 | USB continuous output current | 3000mA | |
| 7 | Battery charge voltage | 3.0~4.2V | Vbat |
| 8 | Output voltage | 5.0~5.25V | USBA unload |
| 9 | Output current | IOUT =3.0A | VOUT >4.75V |
| 10 | Boost efficiency | Vbat >4.0V ; I=3.0A | >90% |
| 11 | Output no-load voltage | 4.8-5.3V/8.8-9.3V/11.8-12.3V | |
| 12 | Output loading voltage | 4.75-5.2V/8.75-9.2V/11.75-12.2V | |
| 13 | Output wave | ≤200mV | Output 2A |
| 14 | Battery cell charging cut-off voltage | 4.2V-4.30V | |
| 15 | Battery cell discharging cut-off voltage | 2.5-3V | |
| 16 | Self-consumption current | ≤100uA | |
| 17 | USB output 1A efficiency | 82%-87% | Battery voltage 3.85V |
| 18 | Operating temperature | -10ºC-- 60ºC | |
| 19 | Storage temperature | -25ºC-- 45ºC | |
| 20 | Relative humidity | ≤90%RH | |
| 21 | Short circuit protection | The output can be automatically protected in case of short circuit. |
