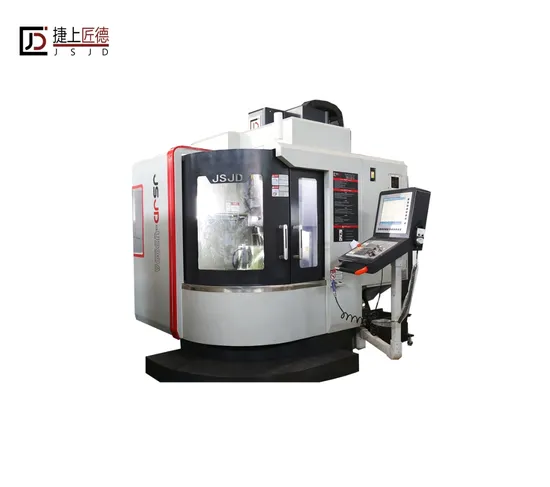

High Precision 5 Axis Cutting Machine

Product Description

Product Description
Product Parameters

Specification		Unit	U-200A
Travel	X axis	mm	600
	Y axis	mm	400
	Z axis	mm	430
	A axis	°	+30~-110
	C axis	°	360
Controller	System	-	Syntec/Lynuc
	Total axes	-	5
Accuracy(VDI 3441)	X/Y/Z axis positioning accuracy	mm	±0.005/300
	X/Y/Z axis repositioning accuracy	mm	±0.003/300
	A/C axis positioning accuracy	"	±10
	A/C axis repositioning accuracy	"	±5
Spindle	Spindle taper	-	BT40
	Spindle speed	rpm	12000/15000
	Spindle drive type	-	direct
	Spindle center to z axis guide rail	mm	467
	Spindle end face to work table surface	mm	40-470
Table	Rotary table diameter	mm	Φ200
	Maximum processing diameter	mm	Φ240
	Maximum processing height	mm	210
	Table load	kg	20
	T-slots	mm	4-12H7×90°
Guide rail	X/Y/Z axis ball screw	mm	2816/2816/3216
	X/Y/Z axis guide rail type	-	linear
Tool magazine	Number of tools	T	24
	Tool length/weight	-	300mm/8kg
	Tool diameter (full/adjacent empty)	mm	ø80-ø150
Motor power	Spindle motor	kw	7.5
	X/Y/Z axis servo motor	kw	2/2/3
	Coolant pump motor	w	750×1,1350×1
Feed	X/Y/Z axis rapid feed	m/min	48
	A/C axis rapid feed	rpm	100/234
	Cutting feed	m/min	10
Others	Power	kva	20
	Air pressure	kg/cm2	6~8
	Dimensions	mm	2030×2475×2640
	Weight	T	4.5

Machine characteristics:
- The machine appearance adopts round arc design with step ladder, which is convenient for clamping workpieces.
- A/C axis structure 5-axis CNC machine tool with DD motor drive, no backlash, no mechanical wear and maintain the best accuracy for a long time.
- The 5-axis rotary table is mounted directly on the X-axis guideway to maximize the development of the machine's cutting performance.
- Rapid traverse speed up to 48m/min, effectively improving machine processing efficiency.
Standard configuration: -Direct drive motor 5 axis rotary table -BT-40 direct spindle 12000rpm -Disc type tool magazine(BT40-24T) -Fully Enclosed Shield -Spindle oil cooler -Industrial refrigeration and air conditioning -Rigid Tapping -Tool checking instrument -Foundation pads and adjusting bolts -Separate electronic handwheel -LED work light -LED three-color warning light -Automatic lubrication system -Tool Cutting Cooling System -Automatic chip flushing function -Ethernet, CF card and USB interfaces -Cleaning water gun -High pressure air gun -Tool box -User manuals -Control circuit information Optional configuration: -BT-40 direct spindle 15000rpm
-Hsk-A63 18000rpm motorized spindle
-Hsk-A63 20000rpm motorized spindle
-Grating ruler
-High pressure spindle center outlet system
-Workpiece measuring system
-Oil mist recovery system
-Oil-water separator More products

	Item	Unit	UT-200A	UT-380A	U200A	U-380A	U-400A	U-500A	UM-500B	WZ-650
Travel	X/Y/Z axis travel	mm	600/400/330		600/400/430		820/560/570	1100/700/700	1100/750/500	820/520/500
	Spindle end face to table surface	mm	120-450	90-400	40-470		70-630	60-760	170-670	150-650
	Spindle center to Z axis guide rail	mm	467				630	717	290	187
Rotary Table	Table size	mm	Φ200	Φ260	Φ200	Φ260	Φ320	Φ400	Φ400	Φ650
	Table load	kg	20	60	20	60	70	200	150	300
	Maximum machining height	mm	200	300	200	300	260	380	480	370
	Mmaximum rotating diameter	mm	Φ240	Φ380	Φ240	Φ380	Φ450	Φ500	Φ620	Φ650
	T-slots	mm	4-12H7×90°					8-14H7×45°		5-14H7×100°
Controller	System	-	Syntec/Lynuc
Spindle	Speed	rpm	20000		12000/15000
	Taper	-	BT30		BT40		BBT40
	Motor Power	kw	5.5		7.5		11
Feed	X/Y/Z axis rapid feed	m/min	48/48/48				36/36/36		30/30/30	24/24/24
	X/Y/Z axis cutting feed	m/min	10/10/10
Accuracy	X/Y/Z axis positioning accuracy	mm	±0.005/300
	X/Y/Z axis repositioning accuracy	mm	±0.003/300
	A/C axis positioning accuracy	"	±10					±15	±10
	A/C axis repositioning accuracy	"	±5					±10	±5
Others	Air pressure	kg/cm²	6~8
	Capacity	kva	15		20		25	30	25
	Dimension	mm	2000×2620×2450		2030×2475×2640		2880×2850×3110	3380×3290×3300	3170×4250×3400	3630×3890×3230
	Weight	T	4.2	4.4	4.5	4.7	6.5	8	6.5	12.5
