Water treatment Plastic Teller Rosette Ring PP Tellerette Packing Ring

Product Description

Product Description
Water treatment Plastic Teller Rosette Ring PP Tellerette Packing Ring

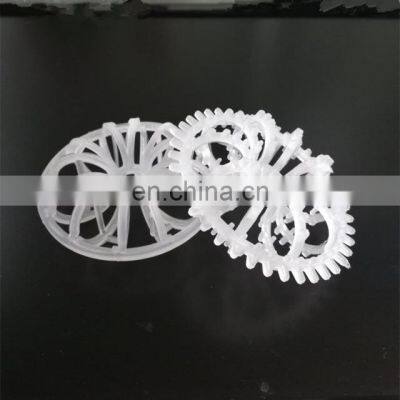

Plastic Teller Rosette Ring is also named Teller Ring, which is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics.
It has a strong resistance to chemical corrosion, large void space and fluid capacity, low pressure drop.They are available for stripping, absorbing and washing in low temperature of 60-150°C in the tower in chemical,petrochemical, alkali chloride, coal gas and environmental protection industries.
We can supply various materials, such as PP, PE, RPP, PVC, CPVC, PVDF.
Technical Specification:
Type
D*H*δ
mm
Bulk number
n/m3
Bulk density
kg/m3
Specific surface area
m2/m3
Void volume
m3/m3
Dg25
25*9* (1.5*2)
170000
90
2590.82
Dg47
47*19*(3*3)
32500
111
185
0.88
Dg51
51*19*(3*3)
25000
103
180
0.89
Dg73
73*28*(3*4)
8000
102
127
0.89
Dg95
95*37*(3*6)
3900
88
94
0.90
Dg145
145*48*(3*6)
1100
48
65
0.95

Rosette Ring Packing applications:
Wet scrubbers for gas absorption
Cooling towers for heat transfer
Mist eliminators for liquid particle removal
Gas absorption columns
Gas strippers
Air washers
Rosette ring are always packed in ton bags or plastic bags.
If you need, we can also packed as your requirement.
Welcome your inquiry anytime.
Cathy is always here!
