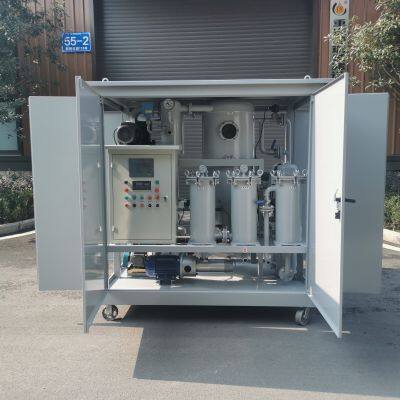

high vacuum transformer oil filter machine
Description
Easy Control Transformer Oil Regeneration Machine With Vacuum Pumps System
1. The transformer oil regeneration machine produced by Tongrui Oil Purifier Manufacturing Co., Ltd. is of high quality and low price. The products are sold abroad and welcomed by foreign consumers.
2. The purifier is used to deal with various unqualified or used insulation oils, including aged transformer oil, transformer oil, switch oil, cable oil.
3. This type of insulating oil filter can be degassed and dehydrated by low vacuum distillation to quickly and effectively remove impurities in the insulating oil. It can increase the voltage value, the dielectric strength of the oil, extend the service life of the oil and ensure the safe operation of electrical equipment. Power plants and mines mainly use machinery to process transformer oil, transformer oil, switch oil and cable oil.
Application of Transformer Oil Cleaning Machine:
Mainly designed for purification of transformer oil, instrument transformer oil, switch oil, cable oil and other insulating oil. It can remove water and gas in oil and strengthen the dielectric of insulating oil.
The transformer oil regeneration machine manufactures by Tongrui is applied to purify the unqualified transformer oil, mutual inductor oil, switch oil and other insulation oil.
Especially for large transmission and transformation voltage equipment above 110KV and national main transformer network in areas above 500 meters above sea level.
Technological Features of Transformer Oil Cleaning Machine:
Small-sized and easy to move, can be used indoors and outdoors.
New and efficient electrical heating system, heat equably and save energy.
The multistage and precise filter system, the combination of molecular adsorption filter and net filter element.
Multistage vacuum resolution system, efficiency is higher than ordinary vacuum oil purifiers three to five times. Remove water, gas and impurity in oil efficiently and improve the compression strength and quality of the oil. Ensure electrical equipment run safely and also has the function of vacuum fuel charging.
Infrared liquid level sensor, constant temperature control system, forth breaking control system, pressure protective control system, linkage protect the system and efficient dehydrate and degas system ensure machine work efficiently and safely.
Novel design, compact structure, easy to operate, can work anywhere without anyone on duty.
Technical characteristics
| Item
| Unit
| ZJA-30
| ZJA-50
| ZJA-75
| ZJA-100
| ZJA-150
| ZJA-200
| ZJA-300
|
working vacuum
| Mpa
| -0.085 ～ -0.099
|
Working pressure
| Mpa
| ≤0.4
|
Working temperature
| ℃
| 20-80
|
Power supply
| /
| 380V-50HZ 3 phase( or at user’s option)
|
Working Noise
| dB
| ≤65-80
|
Heating Power
| KW
| 30
| 45
| 54
| 72
| 120
| 144
| 168
|
Total power
| KW
| 34
| 49
| 60
| 79
| 131
| 159
| 188
|
Inlet&outlet size
| mm
| 25
| 32
| 42
| 42
| 50
| 50
| 60
|
Oil index after treatment
| Water content
| ppm
| 1st pass ≤10 PPM
|
3rd pass ≤3 PPM
|
Breakdown voltage
| KV
| 1st pass ≥50
|
3rd pass ≥75
|
Gas content
| %
| 1st pass ≤0.5%
|
3rd pass ≤0.05%
|
Filter fineness
| µm
| ≤ 5 µm ( or at user’s option)
|
Acetylene
content（vol.）
|
| 3rd pass : 0
|
FAQ:
1. How can I buy this machine?
First, talk all the machine details with our salesperson, then talked about the price, after confirming the prices. you can choose the payment terms Trade assurance/TT/Escrow/Western Union etc.
Then, you arrange a deposit, after getting the deposit, we produce the machine.
Last, packing and shipping the machine for you.
2. How do you guarantee that we can receive the goods ordered?
We are a legal company supervised by the government and also the company as well as the third parties, what is more important, honesty and trustworthiness are our basic principle. Please trust us that we will offer the best to our client.
3. Can the motor work with our local power supply?
When you place the order, you could tell us the power supply available to your country. If our standard motor can not work with it, we would modify it for you, maybe it will occur a few extra costs.
4. What is your after-sale service?
Usually, for the simple machines, we supply the online instruction service, if it is during the warranty period(one year), we supply the replaceable parts for free charge, if it is our of the date, we will charge for cost price. We would send our engineer to repair the machine for complicated machines, and fees should be undertaken by the buyer.
The products made by Tongrui involve in ZJA Series Double Stage Transformer Oil Regeneration Machine, ZJBZJB-T Series Single-stage Vacuum Oil Purifier, ZJC Series Turbine Oil recycling, ZJD Series Lubrication Oil Filtration, NRY Engine Oil recycling, DIR Base oil Distillation Equipment and DDRseries diesel distillation equipment, etc. If you have any questions or needs about transformer oil regeneration machine, please feel free to contact us.
>>
