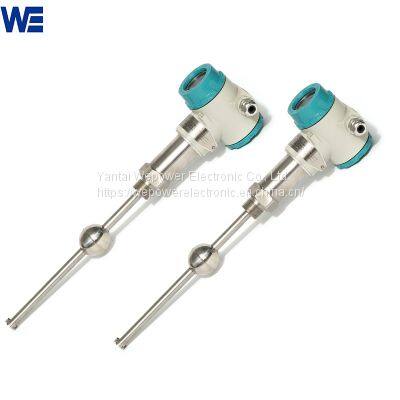

| Product | Anti-corrosive magnetostrictive level transmitter | ||
| Measuring range | 100-5000mm | ||
| Wetted material | AISI304, AISI316, PTFE etc. | ||
| Measurement field | Water, aqueous solution, beverages, food production, beverage production, chemical reagent production, petrochemical industry, crude oil storage, etc. | ||
| Medium | specific gravity ≥0.5g/cm3 and viscosity 1.25St | ||
| Accuracy | :≤±0.1%FS or 1um, whichever is the maximum | ||
| Power supply | DC12-36V / Rated 24V | ||
| Output | two-wire 4-20mA+HART (optional) | ||
| Measurement display resolution | 0.3mm | ||
| Nonlinearity | Hysteresis | ≤±0.002%FS | |
| Temperature | -40-85°C (special instruction are required if it exceeds 85°C) | ||
| Pressure | 0-1Mpa (special indication is required when exceeding 1Mpa) | ||
| Explosion-proof | EXiaⅡCT4 intrinsically safe type | ||
| Junction box protection level | IP65 | ||
| Magnetic float ball | Standard ø76 special supply ø48, ø51, ø120, ø145 or user's choice. Float height F: ø48, is 55, ø51 is 60, ø76 is 80, ø120 is 125, ø145 is 150 (mm) |
