| I.FEATURES |

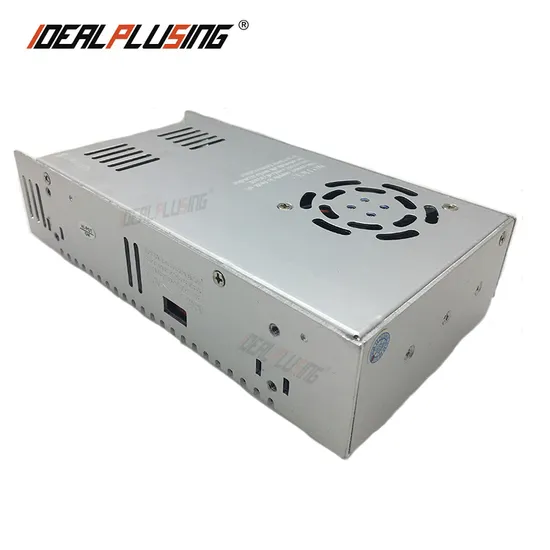

| 1 | AC 220 volt Adjustable 36v 10a 48v 7.5a 360W DC Led Industrial Switching Power Supply |
| 2 | Adjustable with Compact size, light weight |
| 3 | Wide range AC Input , AC input 110V/220Vac input selected by switch |
| 4 | 100% full load burn-in test |
| 5 | Protection: Short circuit / Over load / Over voltage |
| 6 | Fixed switching frequency at 25KHz |
| 7 | 1 year warranty |
| 8 | High efficiency, reliability quality, competitive cost |
| 9 | 0-5Vdc / 0-10Vdc External control output (Optional) |
| 10 | Extra adjustable potentiometer (Optional) |
| 11 | Output voltage adjustable, output current be fix |
II. COMMON SPECIFICATION |
| Adjustable range for dc voltage | The output voltage is 100% adjustable through the potentiometer |
| AC input voltage range | AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch |
| Input current | 115V/3.81A / 230V/1.91A |
| AC in lash current | Cold start current 25A/230V |
| leakage current | ≤1.5mA 230V AC |
| Overload protection | Load more than 110%~120% switch to constant current mode |
| Over-voltage protection | ≥15% of output voltage |
| Setup rise hold time | 200ms 100ms 20ms |
| Vibration | 10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes |
| Withstand voltage | Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC |
| working temperature | -10ºC-65ºC, 20%-90%RH |
| Storage temperature | -10ºC--65ºC, 20%--95%RH |
| Net weight | 0.9KG |
| Dimension | 215L*115M*50H (MM) |
| OTHERS |
| Output voltage tolerance | 1% |
| Wave and noise | 150mV P-P |
| Efficiency | 91% |
| III. MODEL INFOMRATION |
| MODEL | OUTPUT VOLTAGE | OUTPUT CURRENT | OUTPUT POWER |
| IPS-SP12-30 | 0-12VDC | 30A | 360W |
| IPS-SP24-15 | 0-24VDC | 15A | 360W |
| IPS-SP36-10 | 0-36VDC | 10A | 360W |
| IPS-SP48-7.5 | 0-48VDC | 7.5A | 360W |
| IPS-SP60-6 | 0-60VDC | 6A | 360W |
| IPS-SP70-1.5 | 0-70VDC | 5.1A | 360W |
| IPS-SP90-4 | 0-90VDC | 4A | 360W |
| IPS-SP110-3.3 | 0-110VDC | 3.3A | 360W |
| IPS-SP150-2.4 | 0-150VDC | 2.4A | 360W |
| IPS-SP200-1.8 | 0-200VDC | 1.8A | 360W |
| IPS-SP220-1.6 | 0-220VDC | 1.6A | 360W |
| IPS-SP250-1.4 | 0-250VDC | 1.4A | 360W |
| IPS-SP300-1.2 | 0-300VDC | 1.2A | 360W |
| IPS-SP330-1.1 | 0-330VDC | 1.1A | 360W |
| |
