Kexint S3400-24t4fp, with 4 X 1GB Combo Uplinks, Support Erps

Product Description

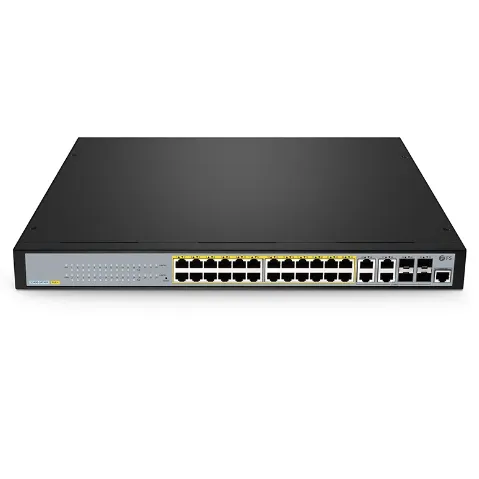

Product Description S3400-24T4FP, 24-Port Gigabit Ethernet L2+ PoE+ Switch, 24 x PoE+ Ports @370W, with 4 x 1Gb Combo Uplinks, Support ERPS 24-Port Managed PoE+ Switch is equipped with 24x 10/100/1000BASE-T ports, 4x 1Gb RJ45/SFP combo, 24x RJ45 ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. 4x RJ45/SFP combo ports meet the different network expand needs.
This access switch delivers a compact, cost-effective solution for carrier's IP MAN and enterprise networks. Based on the high-performance hardware and FSOS platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenario.

Product Spotlights Up to 24 PoE+ Ports, Total Budget 370W 3 Built-in Fans and Single Power Supply Support ERPS, QoS, OSPF, L2 Multicast Functions, RIP Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security Advanced Network Monitoring Using SFlow Support WEB/CLI/SNMP/SSH for Flexible Operation
Specification

Ports	24x 10/100/1000BASE-T RJ45 | 4x 1G RJ45/SFP Combo	Total Number of IPv4 Routes	128
Switching Capacity	56 Gbps	MAC Address	384
Forwarding Rate	42 Mpps	ARP Table	100-240VAC, 50-60Hz
Flash Memory	128MB	Input Voltage	48VDC
RAM	16MB (NOR)	Output Voltage	IEEE 802.3af/at
Power Supply	20W (370W with PoE)	Packet Buffer	0.5MB
Fan Number	1 Built-in	Operating Temperature	0ºC to 45ºC(32°F to 113°F)
Airflow	3 Built-in	Storage Temperature	-40ºC to 70ºC(-40°F to 158°F)
Dimensions (HxWxD)	1U	Product Material	Metal
Mounting Methods	Rackmount	PoE Budget	370W
Max. Power Consumption	20W (370W with PoE)	PoE Standard	IEEE 802.3af/at

Software Spotlights High Availability and Multi-Service Support Support up to 8 units stacking
Support line-rate IPv4/IPv6 dual-stack multi-layer switching
Support a wide range of IPv4 routing protocols, including static routing, RIP, and OSPF
Support MAC/IP/TCP/UDP/VLAN/ COS/ DSCP/ TOS based QoS
Support Voice VLAN, GVRP (similar to VTP) and QinQ
Support static/LACP link aggregation

Error-Free Network Configuration Support Web-based management, Telnet
Support EAPS and ERPS
Support IPv4/IPv6/MAC/ARP ACL
Support SNMP v1/v2/v3, RMON
Support LLDP (802.1ab)
Support static configuration and dynamically learning of MAC address

Secure and Simplified Access for Users and IoT Support Local/Radius/Tacacs+ Authentication
Support Port-based Authentication
Support Mac-based Authentication HTTPS and SSL (v3)
Support DHCP snooping
Support IP Source guard
Support DoS Protection
