High Speed Automatic Down Feather Filling Machine

Product Description

HX-R3 Intelligent Automatic Down Filling Machine
I. Technical parameters

Model	HX-R3
Scope	Down jacket
Main Body Box Size(mm)	2200 × 960 × 1950
Weighing Box Size(mm)	1300 × 800 × 1200
Applicable Materials	50-90 # down
Filling Port	1
Charging Capacity (KG )	10
Cycle Number	3
Weighing Range (g)	0.2-25
Precision (g)	±0.01
Air Pressure Monitoring	Optional
Constant Humidity System	Optional
Down Returning System	Optional

II. Main Features
a) High speed: Innovated three-weight design makes the machine can reach 1600-2500 grids/ hour with pneumatic air saving.
b) High precision: Non-contact weighing method makes the accuracy of down filling can reach ±0.01g.
c) High stability: Key electrical parts adopt world-wide known brands, which ensure the good reliability and stability, low failure rate and long service life.
d) Simple operation:Touch screen interface makes filling operation more simple and efficient.
e) Humanized design:Vacuum down filling and recycling system makes the working place clean as well as protecting operators being hurt by flying down .

III. Features by parts

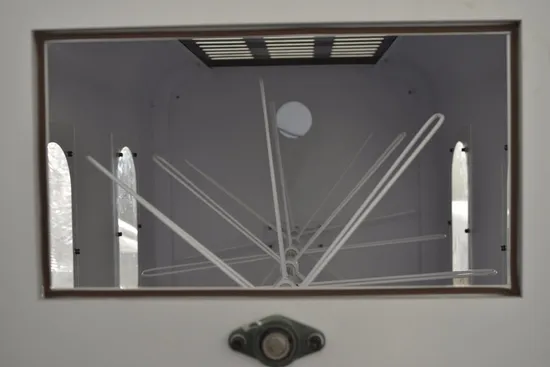

A. Down Stirring Cabin;



The unique stirring rulers and arc bottom design makes the down stirred even and almost no dead corner.

B.Weighing box


It adopts world-wide known weighing sensor, intelligent weighing, high accuracy.
The inner side of the weighing box is anti-static coated to avoid down stuck to the weight wall.

C. Down discharging barrel

Speed up to 1600-2500 grids per hour- high efficiency .

D. Long life pedals


Pedal is available for about 5 million times. The right pedal is a filling pedal, the left one is a supplemental
Pedal. If the touch screen shows there are residual down in the weighing box due to parameter settings and other reasons after down-filling finished, step down the left pedal to complete the entire filling operation.

E. Touch screen




Touch screen-man-machine interface display makes down filling more simple and efficient. Orders or data can be easily saved and amended. It can also makes the operator read weighing data timely to correct weight differences.

F. High frequency valve



The frequency of Ordinary solenoid valve is 0.05 seconds, but high frequency valve can reach 0.02 and 0.03 seconds, which provides a higher operating frequency and improve working efficiency.

G. Control Cabin:
It adopts world -wide known brand of electrical appliances with less malfunction rate. The protective devices were installed at the same time. When the current is too high, thermal relay can effectively protect the motor, solid-state relay can effectively protect the PLC and enlong its life span.
H. Down recycling system
Down recycling system can save production cost.

IV. Electrical parts

Name	Brand and Origin	Model
PLC	Delta (Taiwan) )	DVP16ES2
Touch screen	Delta (Taiwan) )
Switching Power Supply	MW (Taiwan)	D247-63
Contactor	Schneider (France)	CJX2s 1210
Thermal relay	Schneider (France)	JRS1D-25
Solid State Relay	Schneider (France)	SSR-10DD
High Frequency Valve	MAC(USA)
Sensors	HBM(Germany)

---
