Product Details
Product Description
Product Description

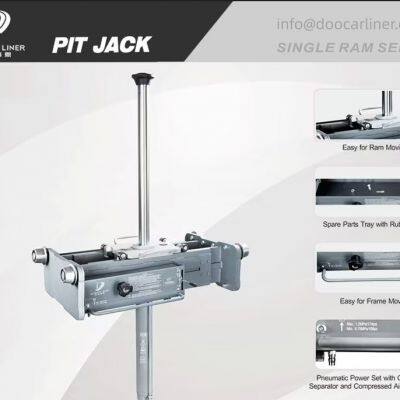

TGD-150 is the single ram air hydraulic pit jack designed and manufacturer by Doocar Liner. The air hydraulic pit jack features:
Standard air hydraulic single ram pit jack.
Precision air hydraulic components (with fast-moving cylinders).
Self-resetting switch for safe operation.
The height of jack is adjustable according to actual demand.
It has wide applicability and can be used for lifting beams, gearbox bases, supporting bridges, etc.
Equipped with spring-loaded bearings to facilitate lateral movement of the cylinder.
Specification:
| Model | Load capacity | Working air pressure | Stroke | Min hegiht | Max height | Width L1
| Depth | Weight | L1 option
|
| TGD-150 | 15 T | 0.75-1.2Mpa | 800mm
| 1020mm | 1820mm
| 600-1400mm
| 665mm | 280kg | 600-800mm |
|
|
|
|
|
|
|
|
| 840-1140mm
|
|
|
|
|
|
|
|
|
| 1100-1400mm |
>>
