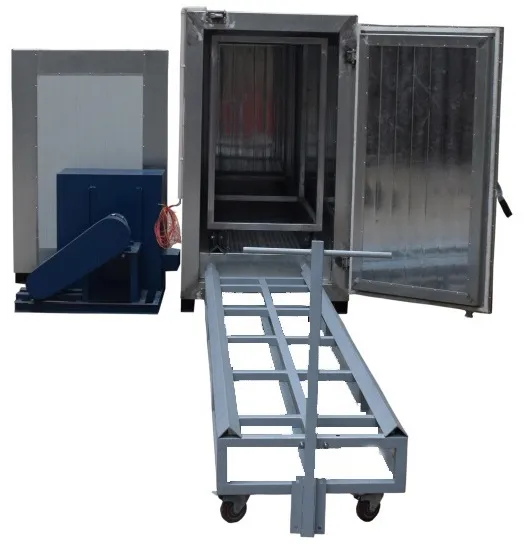

Small Gas Fired Powder Coating Oven

Product Description

Small Gas Fired Powder Coating Oven
Model: COLO-0813
Heating Source: by gas/diesel/LPG
Working size: width800 xdepth 3000x height 1500mm
Application: this small gas powder coating oven is suitable for curing thin and long products
Techinial Specifications

Name:	COLO-0811 Gas Powder Coating Oven
Working diamension	width800 x depth 3000x height 1500mm
Overall Diamension	width1200 x depth 3500 x Height 1800mm
Heating supply:	gas
Voltage	380V(50-60Hz)
Heating time	15-30 min(180'C)
Heating Temp.	180-250'C
Burner	Italy RIELLO brand.
Circulation/Air Flow	vertical
Motor Power	1.5kw

Gas Powder Coating Oven Structure

Item	Name	Qty
1	Chamber	1 set
2	Fan Motor	1 set
3	Electrical Cabinet	1 set
4	Trolley	1 set
5	Buring room	1 set
6	RIELLO burner	1 set

Excellent Features of Powder Coating Gas Oven
1.long lifespan: indirect heating like gas/diesel/LPG oven, will use longer than electrical powder coating oven
2. saving energy and cost: firing gas or diesel cost less of energy
3. good curing effect on the metal surface. We use good material and components to achieve perfect warm insulated system:
1) inner wall: Galvanized Steel(thickness=1~1.5mm),
2).interlayer: rock wool board(thickness=100~120mm), insulated, maintain the inside temperature
3).outer wall: Color Steel(thickness=1-1.5mm), anti-rust
4.PLC control system for easy operation You can setting heating time and temperature on the panel. When the heating time arrive, the system will stop automatically.
Contact me for more details

---
