Recycling Plastic Film Bottle PP HDPE LDPE PE Plastic Granulator Pelletizer

Product Description

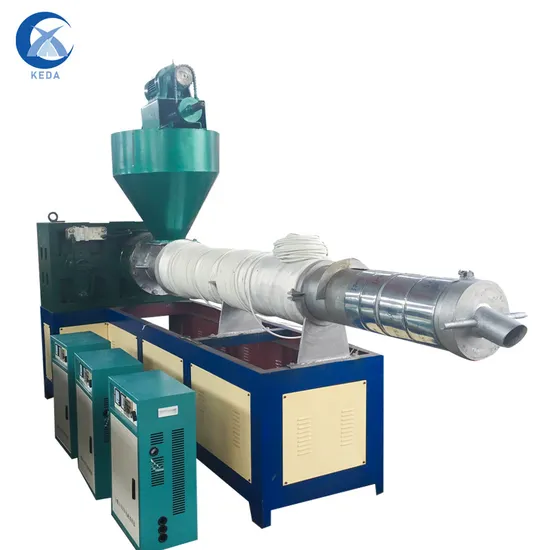

pp/pe plastic granulator machine recycling waste plastic machines
The machine is suitable for the production of recycled plastic pellets such as waste PP, PE, PPR, ABS, EPS, etc. Its characteristics: no need to dry after crushing and washing, drying, granulation. High output, small degree of product discoloration. Feeding The system uses high speed blade cutting and forcing devices. The screw and barrel are treated with special surface treatment, which has the characteristics of wear resistance, good mixing effect and high output. The design of the exhaust or natural exhaust port can eliminate moisture and exhaust gas in the production process, make the discharge more stable, and the rubber particles are more compact, ensuring the excellent quality of the product.
QUALITY ASSURANCE:
1.ELEXTRICAL BOX : High-tech power distribution safe use.
2.HOPPER : Control extrusiton conditions,suitable for kinds of material processing.
3.EXHAUST : Safely purge air and control air pressure.
4.SCREEN CHANGER : Fast and easy,fast and fast.

model		SJK-125	SJK-150	SJK-180	SJK-200	SJK-220
Screw diameter	Host	125mm	147mm	177mm	197mm	217mm
	auxiliary	125mm	125mm	147mm	177mm	177mm
Motor power	Host	22KW	37KW	45KW	55KW	75KW
	auxiliary	11KW	15KJW	15KW	18.5KW	22KW
Rotating speed		60-65	60-65	60-65	55-60	50-55
productivity		100-150kg/h	150-220kg	200-300kg	300-400kg	500kg
weight		2850kg	3500kg	4250kg	5680kg	6880kg

80kw electromagnetic heating suitable for wet mateirals
The main technical parameters
1. Screw diameter: 150mm/135mm
2. Screw size: 2300mm/1200mm
3. Exhaust type: single vent
4. Host drive power: 45KW/15kw
5. barrel heating power: 80KW electromagnetic heating
6. Number of barrel heating zones: Four zones
7. Barrel screw material: 40Cr nitriding treatment
technical parameters
8. Granulator configuration: 2.2kw electromagnetic speed control (seven cutters)
9. Cooling tank configuration: stainless steel water tank
10. Change the filter method: Electric gear die
11. Heating ring: stainless steel heating ring
12. Gearbox gear: hard gear, high frequency quenching
13. Production: 200-250kg / hour
With degassing port on first stage Quartz tube or ceramic heating
Automatic feeding force feeder and belt conveyor, suitable for soft film bags crushed materials
Tube have holes to let the water out to avoid the water into the reducer
Characteristic: unit include:extrusion granulating machine, heating system, power distribution box,cooling flume, and cutter. The machine can produces continuously and only needs one person to operate. The machine are automated from feeding materrials to discharging particles. Make full use of high friction uninterrupted heating system, automatic heating production,avoiding continuous heating and saving energy. Using full automatic power distribution system to ensure the normal operation of the motor. Screw barrel are made of 40Cr imported high strength and high quality, durable in use. Appearance of the machine is beautiful and generous. Based on customer requirements, color is sprayed. The machine adopts ZLYJ series hardened reducer, noise free, maintenance free and long service life. The machine is equipped with quick net changing device, convenient and efficient. The machine is equipped with one hob cutting machine by electromagnetic speed-regulating and has low noise, hob can't be abrasive within 1000t.

---
