China Portable Pneumatic Glass Guard Vacuum Lifters with Post Four Suction Cup Price

Product Description

China Portable Pneumatic Glass Guard Vacuum Lifters with Post Four Suction Cup Price
Battery Glass Lifter
Product Description * DC charging vacuum pump with a battery unit for use on site
* Max. load 2000kg
* Glass length of up to 15m, width 4m
* Applicable up to 300 degree glass
* 0-90 degree flip moving
* 0-360 degree rotation moving
* Avariety of structures and suction cups available for configurations
* Sound and light alarm display
* Integrated accumulator on main beam
* Imported oil-free pump and valve
* Adjustable suction cups, individual switch-off
* Safety tank and pressure gauge
* CE standard design

Technical Data of the battery glass lifter
Model	Size (mm)	Sucker diameter (mm)	Sucker quantity (pics)	Power system	Control mode	Safety loading (kg)	Function
HP-GX-4S	900*730*240	300	4	DC12V	Manual/ Remote	400	Flip 90 degree (manual), rotate 360 degree (rotate)
HP-GX-6S	1800*1190*240	300	6	DC12V	Manual/ Remote	500
HP-GH800-8S	2800*1400*220	300	8	DC12V	Manual/ Remote	800
HP-GH1000-10S	2800*1400*220	300	10	DC12V	Manual/ Remote	1000
HP-GH1200-12S	(1000+2800+1000)*1400*220	300	12	DC12V	Manual/Remote	1200
HP-GH1500-16S	(1000+3000+1000)*1400*400	300	16	DC12V	Manual/Remote	1500
HP-GH2000-20S	(1500+3600+1500)*1400*400	300	20	DC12V	Manual/Remote	2000

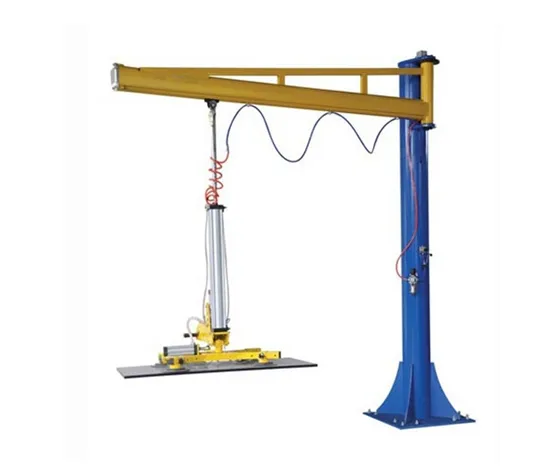

Pneumatic Glass Vacuum Lifter
1.Suitable for moving insulating glass, tempered glass, glass curtain wall, on-site construction of glass deep processing andsolar photovoltaic glass.2.Maximum bearing capacity is 300Kg, Max. glass size can reach to 8m (Length)×4m(width).3.It can turn the glass with various degree.4.Equipped with gas storage function, the machine can continue working 20 minutes without gas.

Technical Data of the battery glass lifter
Model	Size (mm)	Sucker diameter (mm)	Sucker quantity (pics)	Power system	Control mode	Safety loading (kg)	Function
HP-GFX150-2S	800*300	300	2	Compressed air 0.6-0.8MPa	Manual/ Remote	150	Flip 90 degree (pneumatic), rotate 90 degree (pneumatic)
HP-GFX250-4S	860*720	300	4			250
HP-GFQ400-6S	1800*1200	300	6			400	Flip 90 degree (pneumatic)
HP-GFD400-6S	2000*800	300	6			400
HP-GHQ800-8S	2800*1400	300	8	DC12V		800	Flip 90 degree (pneumatic)
HP-GHQ1000-10S	2800*1400	300	10	DC12V		1000
HP-GQ1200-12S	2800*1400	300	12	DC12V		1200
HP-GHQ1500-16S	(1000+3000+1000)*1400	300	16	DC12V		1500

Sheet Panel Vacuum Lifter
1, HP-BS series of equipment are widely used for non-destructive handling of various plates, including corrosion resistant plates, aluminium plates, titanium plates, composite panels, etc.
2, They are also widely used for laser cutting machine, plasma cutting machine, water-jet cutting machine, numerical control press, etc.
3, Brand-new pure pneumatic system, no need to connect electricity, no charge, pneumatic lifting, pneumatic adsorption, economical and applicable.
4, Sucker position can be adjusted to meet dimensional change of different plates.

Technical Data of Sheet Panel lifter
Model	Size (mm)	Sucker diameter (mm)	Sucker quantity (pics)	Power system	Control mode	Safety loading (kg)	Weight (kg)
HP-BSJ500-6S	2000*800	Φ 230	6	380V	Manual/Romote	500	100
HP-BSZ500-6S	2000*800	Φ 230	6	DC12V		500	100
HP-BSQ500-6S	2000*800	Φ 230	6	Pneumatic		500	100
HP-BSJ800-8S	2800*800	Φ 230	8	380V		800	120
HP-BSZ800-8S	2800*800	Φ 230	8	DC12V		800	120
HP-BSJ1500-8S	2800*800	Φ300	8	380V		1500	150
HP-BSZ1500-8S	2800*800	Φ300	8	DC12V		1500	150
HP-BSJ1000-10S	(1000+300+1000)*1000	Φ230	10	380V		1000	210
HP-BSZ1000-10S	(1000+3000+1000)*1000	Φ 230	10	DC12V		1000	210
HP-BSJ2000-10S	(1000+3000+1000)*1000	Φ 300	10	380V		1000	250
HP-BSJ2500-12S	(1000+3000+1000)*1000	Φ 300	12	380V		2500	280

Packaging&Shipping
Packing Details : 1.Simple stretch film packaging;
2.Professional export wooden packing
Delivery Details : 15-20 Days after receive the first deposit.
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass making machines, glass edging and beveling machines, glass cutting machines, tempered glass furnace, etc, with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.
We believe that "IT'S THE BEST THAT FITS MOST".
Every machines can be customized to meet your special requirements.
Hope we can cooperate with you.
Our Service
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
FAQ
1. When can we arrange shippment?
We usually arrange shippment within 20 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4.If our price is higher than another company or factories ?
A:Please check, what is different with the machine,service and guarantee,especially the machine inner electric parts, sometimes, if machine is breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.

---
