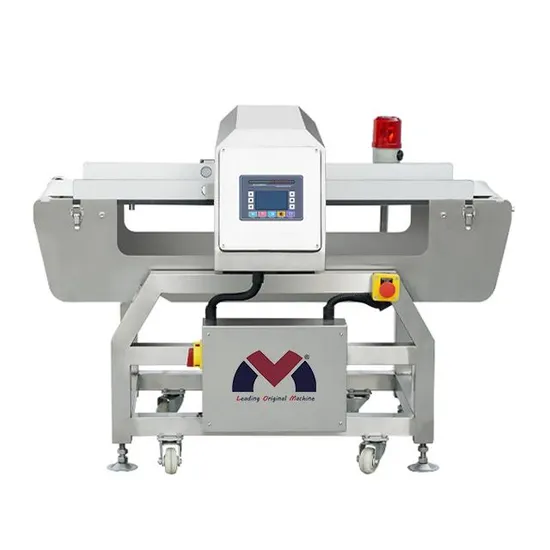

Digital Automatic Food Metal Detector

Product Description

Product Description
Metal detectors for food processing are mainly used in other industries requiring high detection sensitivity, such as food and drug cosmetics, to detect inclusions or missing broken needles, wires or metals such as lead, copper, aluminium, tin and stainless steel in raw materials or products.

Material of Construction	SUS 304
Detection Sensitivity	Fe 1.0mm, Non-Fe 1.5mm, SUS 2.0mm
Conveyor Length	1.4m/5 feet
Conveyor Height From Ground	680 ± 30mm or Customized
Power Supply	110V/220V
Bearing Capacity	5kg or Customized
Transport Package	Ply Wood Case
Conveyor Material	PVC / PU Belt
Order Type	OEM / ODM

Types of Contaminants
There are three main groups of metallic contaminants that a food metal detector can sense:
-Ferrous
-Non-Ferrous
-Stainless Steel detection depends on the magnetic or conductive properties of the contaminant.
-Ferrous metal contaminants are both magnetic and conductive and are easily detected
-Although they are not magnetic, Non-Ferrous contaminants are good conductors and can be detected relatively easily
-Stainless Steel foreign bodies are the most difficult to pick-up as they are usually non-magnetic and a poor electrical conductor. The ability to detect stainless steel is also hindered when the product is wet or has a high salt content
If there are other types of contaminants (glass, calcified bone, ceramics, stone) to be detected, then an X-ray inspection system for food will offer enhanced detection capabilities.
Metal Detector:
1.Smooth running and fast product passage
2. the use of DSP and MCU combined with detection signal data sampling and data processing to improve the detection effect.
3. digital frequency generator produces frequency, phase and amplitude are adjustable sine wave, change the parameters of the analog circuit is difficult to adjust and adapt to the conditions, you can easily adjust the sensitivity of various parameters, etc.
4. large LCD display panel, multi-language menu operation, the user can choose according to needs, with a good human-machine dialogue interface.
5. comply with HACCP, GMP certification standards.
6. window height adjustable, accept customization.
7. monitor the use of sound and light alarm, automatic exclusion or shutdown, operation and use of extremely reliable, humane.
8. can add automatic rejection function, to protect the detection efficiency
Certifications
Company Profile
FAQ
Q:How do I know this machine will work for my product?
A:The length and width of the conveyor belt and the height of this metal detector can be customised to your requirements. Or send a sample to be tested.
Q:How long does it take for the machine to be shipped?
A:Usually 20-25 working days
Q: How do I know if my product is suitable for your machine?
Answer:You can send us a sample of your product and we will test it on the machine.
Q: I want to know how the machine works?
A: We invite our customers to watch a free video via our link on youtube, which shows all the machines that have been
delivered to the customer!
Q: How can I get a good quality machine?
A: There are two ways for the customer to check the machine equipment. One is to commission a trusted person to check the machine and the other is to check the machine in person to make sure it is of good quality
Q: What is the after-sales service like?
A: We have experienced engineers who can come to your overseas factory to solve your problems or guide you remotely via video. Two years of free after-sales service.

---
