Basic Info.
Model NO.
HPA-G47(5600-5800MHz)
Wave Range
C Wave Range Program
Production Capacity
100units/Month
Product Description
Signal Jammer Mobile Module 50W 5.6-5.8GHz PA 2020 New Design
PRODUCT DESCRIPTION:

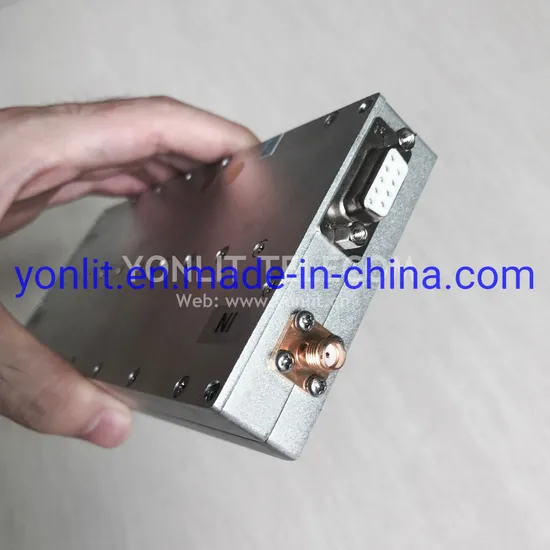

This Power Amplifier module is working for 5.8G C band, model type: PWR-C-200 with aluminum case, it need operating on heatsink.
This product are using GaN technology, power range can be customized from 40-50dBm. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.
More function and parameters are avaiable to customized according to actual requirement.
MAIN SPECIFICATION:
Item | Parameters |
Frequency Range | 5.6-5.8GHz |
Gain | >47dB |
RF Output Power | 50W | 47dBm |
Input Level | 10-15dBm |
In-Band Ripple | 1dB |
Input VSWR | ≤1.5 |
Output VSWR | ≤2 |
Working Voltage | 50W | 28VDC,6A |
Harmonics | ≥12dBc @Odd harmonics, ≥15dBc @Even harmonics |
Spurious | >60dBc @CW |
In/Out Impedance | 50ohms |
RF Input Port | SMA -Female |
RF Output Port | SMA -Female or NK |
Power Interface | Pull-core capacitor |
Working Temperature | -20~65ºC |
Efficiency | ≥25% @CW |
Dimension | About 180x91x26 |
Protection (Optional) | Shutdown over more 70ºC, Auto-restart less than 50ºCor after 30s |
Shutdown over Output High-VSWR |
I/O Port Definition | DB9,Male (Optional) | PIN1: VSWR (VSWR ALarm) |
PIN2: TEMP (Temperature ALarm) |
PIN3: V+ (Forward Power indicator) (0-4V) |
PIN4: Vt (Temperature indicator,-40 to 150, 0.1-1.5V) |
PIN5: GND (Grounding) |
PIN6: V- (Reversed Power indicator) (0-4V) |
PIN7: Vc (Current Indicator) (0-4V) |
PIN8: PTT (Enable PA. Grounding or Hang in air: ON; +5V: OFF) |
PIN9: ALC (0-5V input, 5V: MAX Output Power,0V: Min Output Power) |
Pull-Core Capacitor (Optional) | SWR: VSWR Alarm over High-VSWR (+3V), and PA shutdown |
TEMP: Alarm Over High-Temperature (+5V), and PA shutdown |
GND: Grounding |
Vt: Indicator for Temperature, Vt=0.5V+TC×10mV/ºC; |
V+: Indicator for Forward RF Power (Max:5V) |
PTT: Enable PA, 5V: PA OFF; Hang in air or grounding: PA ON |
DB9 Male RS485 (Optional) | PIN1,PIN2: RS485A; PIN3,PIN4: RS485B; PIN5: GND |
Data Protocol: China Mobile Standard |
PS: Items marked with "Optional" are not standard items, if need those functions should info us before production. |
PAYMENT TERMS, ORDER INFO & PACKING
We accept T/T and Western Union for payment.
Leadtime within 1 month, subject to actual requirement might have change.
Product will got packed in carton with foam, each unit will have single box for packing.
If need more information, please send us email.
