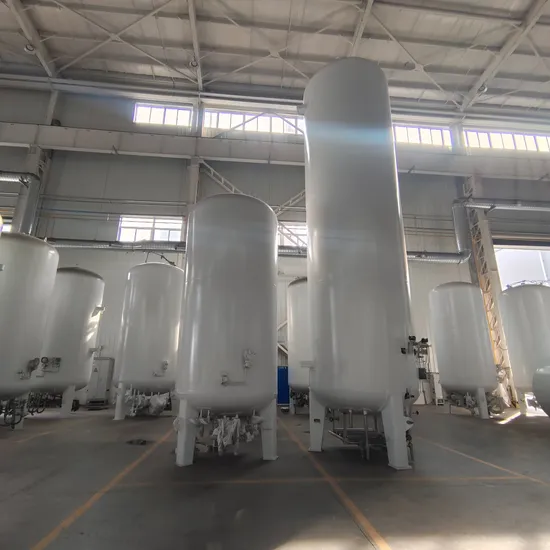

20m3 Vertical High Quality Vacuum Cryogenic Liquid CO2 Storage Tank

US$33,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
CFL-20
Function
Storage Pressure Vessel
Application
Liquefied Gas
Material
Carbon Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Liquid Oxygen/Nitrogen/Argon
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Max Working Pressure(MPa)
0.8
Dimension(L*W*H)
2500mm*2500mm*8756mm
Working Temperature in
-196~-175
Color
White or Customer′s Request
Weight(Kg)
8255
Transport Package
According to Customer Requirements
Specification
20m3
Trademark
CNCD
Origin
China
Production Capacity
2000sets/Year

Product Description


Product Description
Cryogenic liquid storage tank is a series of products about first/second/third type pressure vessels manufactured by our company, the products strictly in accordance with the TSG21-2016 <Stationary Type Pressure Vessels Safety Technical Supervision Rules>GB/T150-2011<pressure vessels>, GB/T18442-2019<stationary vacuum insulation cryogenic pressure vessel>,design, manufacture, inspect and accept.

Cryogenic liquid storage tanks is for double wall,vertical (horizontal) structure,adopt vacuum powder insulation,with the advantage of compact structure,low daily evaporation rate,small footprint,centralized control,safe,reliable,easy operation and maintenance.
Technical Parameter:
Effective volume
(m3)
Working pressure
(MPa)
Demension
(mm)
weight
(Kg)
Working medium Placement type
5 0.8 2000*2000*5130 3412 liquid oxygen
liquid argon
liquid nitrogen
vertical
or
horizontal
10 2100*2100*7170 5378
15 2500*2500*6912 6415
20 2500*2500*8756 8255
30 2900*2900*8870 12899

5 1.6 2000*2000*5130 3945 liquid oxygen
liquid argon
liquid nitrogen
vertical
or
horizontal
10 2000*2000*7895 6787
15 2400*2400*7552 8628
20 2400*2400*9371 10744
25 2700*2700*8980 13500
(Specific cryogenic liquid storage with given pressureand effective volume can be manufactured as customer required)

Structural features:
1.Compact structure, cover a small area.
2.Storage tank and supercharger is a closed system, The liquid or gas can be supplied externally without any additional energy, ensure the liquid or gas purity when discharge.
3.With the pressure adjusting device, the user according to the need to adjust the regulator T,You can discharge the required pressure of the liquid,pressure is stable, easy to operate.
4.Tank provided with a tanker filled joints, can shipping liquid to the vaporizers, tankers.
5.Insulation material perlite and sorbent of storage tanks have been special treatment, to make sure the storage tank have more longer vacuum life. At the same time the storage tank with Metal thermocouple regulation,you can measuring the interlining vacuum when needed.
Packaging & Shipping
1.20ft &40ft container
2.Nude packing or Seaworthy packing
3.Customer's Request
Our Services
Company Profile
F:Are you a manufacturer or a trading company?
Q:We are a cryogenic liquid storage tank manufacturer, producing industrial gas storage equipment and ancillary products, can provide you with a complete set of gas supply equipment.

F:How about the production scale of your company?
Q:CNCD company was founded in 2002, has a total of 5 subsidiaries, 4 production bases, a total area of more than 160 acres, the production plant of 60,000 square meters, more than 400 employees, has rich experience in design, production and export, products have been exported to 68 countries and regions.

F:Do your products meet international standards? What are the certifications?
Q:Our products are in full compliance with international standards and have been certified and certified by many international standards, including ASME,CE,ISO,CCS,BV, etc.

F:Can you provide drawings before delivery?
Q:Of course, we are always ready to provide you with the drawings of the products you need for confirmation.

F:Can I customize the products I need?
Q:Of course, if you think our regular product model does not meet your needs, you can contact us, we will customize the most suitable for your needs.

F:How to deal with the quality problem of the product after purchase?
Q:Our products are of good quality and usually there won't be any problems. However, in case of product problems, you can immediately contact us, we will provide you with remote guidance and replacement parts or other services.
