Welcome to visit

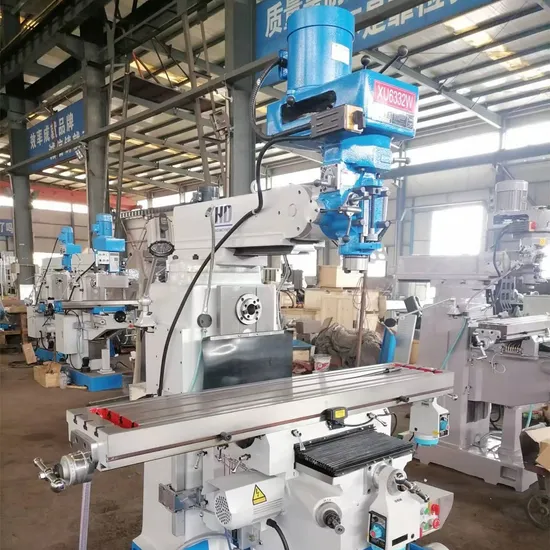

Xu6332W Performance Universal Vertical Milling Machine

US$5,000.00
1-4 Set
US$4,000.00
5+ Set

Basic Info.

Model NO.
XU6332W
Type
Milling Machine
Object
Other
Structure
Other
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Other
Controlling Mode
Other
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Milling Machine
Table Size
320X1570mm
Longitudinal Travel
1000mm
Transverse Travel
400mm
Vertical Travel
450mm
Spindle Speed Range
(V) 16steps 66-4540
Spindle Travel
127mm
Automatic Spindle Feeds
0.04/0.08/0.15
Distance Between Spindle Center and Colu
155-635mm
Distance Between Spindle Nose and Table
0-460mm
Spindle Taper
(V) Nt40
Spindle Motor Power
(V) 3.7 (H)3.0kw
Head Swivel
90 Degree
Machine Weight
1650kg
Transport Package
Wooden Cases
Specification
320X1570*1000mm
Trademark
HAIDI
Origin
China
HS Code
8459590000
Production Capacity
30 Sets/Month

Product Description

Product Picture
Specification Parameter
Specifications XU6332W
Table size(mm) 320X1570
Longitudinal travel(mm) 1000
Transverse travel(mm) 400
Vertical travel(mm) 450
Spindle speed range(rpm) (V) 16steps 66-4540
(H) 12steps 40-1300
Spindle travel(mm) 127
Automatic spindle feeds 0.04/0.08/0.15
Distance between spindle center and
Column(mm)		 155-635
Distance between spindle nose and
Table top(mm)		 0-460
Spindle taper (V) NT40
(H)NT40
Spindle motor power(kw) (V) 3.7 (H)3.0KW
Head swivel 90°
Head tilting 45°
Machine weight (kg) 1650KG
