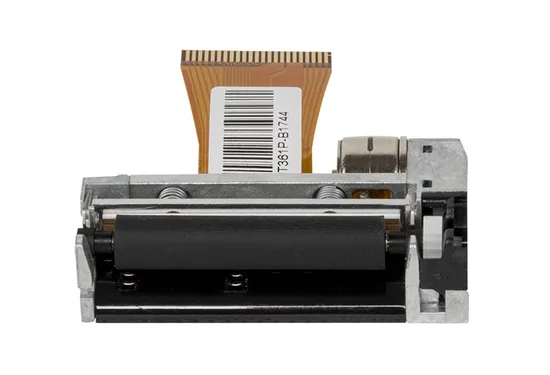

1.5 Inch PRT PT361 36mm Mini Printer Thermal Printer Mechanism for Handheld POS

Product Description

Product Description
1.5 Inch PRT PT361 36mm Mini Printer Thermal Printer Mechanism for Handheld POSOverview:
1. Low voltage supply
The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-10V.
2. Low volume
Compact and light The mechanism is compact and light, dimensions: 57.55mm (width) * 32.7mm (depth) * 15.10mm (height)
3. Printing with
High resolution A high-density printer head of 8 dots/mm makes the printing clear and precise
4. High speed printing
According to driving power and sensitivity of thermal paper, set different printing speed required. Printing speed is 80 mm/ s (max.)
5. Easy paper loading
Detachable rubber roller structure makess the paper loading easier 6. Low noise Thermal line dot printing is used to guarantee low noise printing.Application:
1.Cash registers
2.EFT POS terminals
3.Portable terminals
4.Measuring devices
5.Medical equipment
6.Taxi meters
7.Weighing scalesProduct Parameters
1.5 Inch PRT PT361 36mm Mini Printer Thermal Printer Mechanism for Handheld POS

Series Model	PT361
PRINTING CHARACTERISTICS
Print Method	Direct line thermal
Resolution	8 dots/mm
Max. Printing Width	36mm
Number of Dots	288
Paper Width	45.5±0.5mm
Max. Printing Speed	80mm/s
Paper Path	Curved
DETECTION
Head Temperature	By thermistor
Paper Out	By photo sensor
Black Mark	By photo sensor
Platen Open	NA
POWER SUPPLY
TPH Logic Voltage	2.7V-5.5V
Drive Voltage	4.2V - 8.5V
PEAK CURRENT
Head(Max.)	4.0A(8.5V/64dots)
Motor	Max. 420mA
RELIABILITY
Pulse Activation	100 million
Abrasion Resistance	50KM
ENVIRONMENTAL
Operating Temperature	0 - 50ºC
PHYSICAL CHARACTERISTICS
Dimensions(W*D*H)	57.55*32.70*15.10mm
Mass	36g

Packaging & Shipping
Lead Time:2 Inch 58mm Thermal Printer head JX-2R-06 Compatible with FUJITSU's FTP-628MCL054 Thermal Printer mechanism For POS Printer

Quantity(Sets)	1 - 2000	>2000
Est. Time(days)	5	To be negotiated

Company Profile
Suzhou Qiji Electric Co., Ltd specializes in designing, developing, manufacturing and marketing of printing equipment.With experienced and professional R&D team, we successfully launched a series of printing equipment, such as advanced POS receipt printers, portable printers and LCD modules, bluetooth printer, micro panel printer, KIOSK printer, barcode label printer, as well as printer mechanisms (thermal & impact type) and so on.Our products are widely used for POS/ECR, transport ticketing, instrument analyzers, KIOSK system, electronic medical equipment, self-service solution, fire safety, tax control, shopping malls, car automotive, food and beverage industries, embedded printing solutions, cinemas, highway, boarding cards, tax control system and so on.
FAQ

1.Can I get a sample order first to test the quality and compatibility?

Yes, usually we have samples in stock, customers can easily buy them for testing purpose.

2.What about delivery time?

For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity.

3.How about Payment terms?

For sample, Paypal, Western Union. For bulk order, T/T prepaid.

4.How about shipping methods?

DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way.

5.How about the warranty?

All items have 1 year guarantee.

6.How will you control the printer's quality?

We fully tested every product before shipping out, and also we have QC persons.

7.Can you make OEM or ODM for products?

Yes, OEM and ODM products are available.

---
