Rake Rotary Vacuum Dryer/ Blade Vacuum Dryer/ Rake Harrow Dryer for Paste-Like Mixture

Product Description

Company introduction: Jiangsu Xingxing Drying Equipment Co., Ltd
WORKING PRINCIPLE

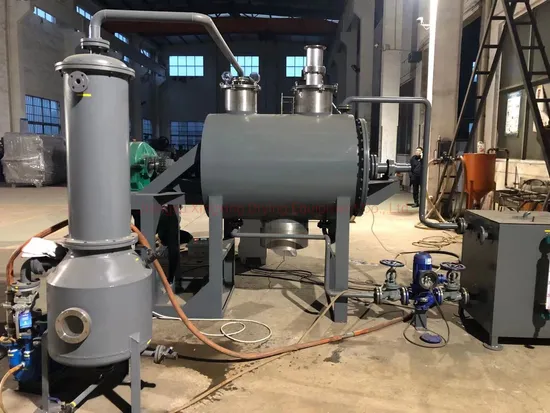

ZPG vacuum horrow dryer is a new kind of horizontal batch vacuum drying equipment. the wet materials experience conduction and evaporation. Blade stirrer continuously removes materials from hot surface, and develops a recycle stream in the container. after evaporation, the water is withdrawn from the vacuum pump.
FEATURES
1. this machine uses large areas of layers to do heat, thus enable large heat transfer area and high thermal efficiency.
2. Stirring is set so that the materials in the barrel form a state of continuous circulation, further improving the uniformity of the material being heated.
3. Stirring is set, allowing smooth drying of pasty, creamy and mushy materials.
APPLICABLE MATERIALS
in industries of medicine, food and chemical, it is used to dry following materials:
1. Applied in pasty and powdery materials.
2. Heat-sensitive materials requiring low-temperature drying.
3. Easily oxidized, explosive, strong-irritant and highly-toxic materials.
4. Materials requiring recovering organic solvent.
Technical Parameter

Item	Model
Name	unit	ZPG-500	ZPG-750	ZPG-1000	ZPG-1500	ZPG-2000	ZPG-3000
Working volume	L	300	450	600	900	1200	1800
Heating area	m2	6	7.6	9.3	12.3	14.6	19.3
Srirring revolution	rpm	6-30stepless variable
Power	kw	4	5.5	5.5	7.5	11	15
Design pressure of Jacket(Hot water)	MPa	≤0.3
Vacuum in the cylinder	MPa	-0.09~0.096

Company Show
Company introduction: Jiangsu Xingxing Drying Equipment Co., Ltd.
Jiangsu Xingxing Drying Equipment Co.,Ltd has established in 1998 and it covers an area of 15000 square meters, possesses fixed asset of USD 7 million. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.
CERTIFICATE
Package:wooden case
Service:
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
We look forward to cooperating with partners from all over the world to build win-win cooperation relationship in long term. Welcome for your visiting.
Previous Exhibition
FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.
2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.
3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.
4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.

---
