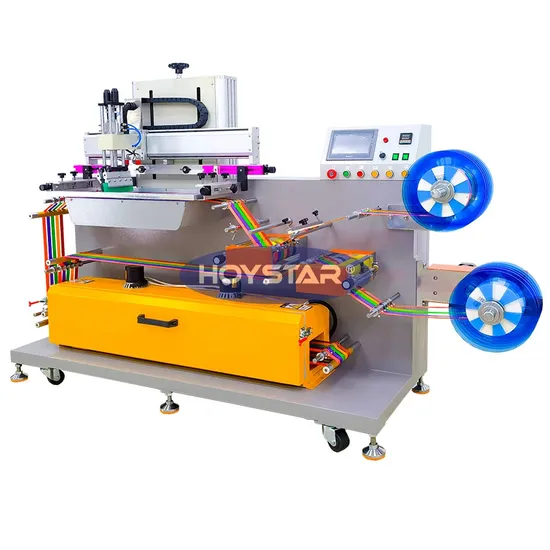

Automatic 1 Color Roll to Roll Print Machinery for Satin Ribbons

Product Description

Product Description Application:
This machine is mainly used for all kinds of ribbon printing, the machine adopts a double reel mode, so that the printing and roll are more stable, and the screen frame is snap-off mode when printing,which can be applied to printing with different inks.
The machine is controlled by PLC and touch screen, which is safe and simple to operate.
The unique oven design is equipped with hot air circulation.
The product can pass through the oven in double-layered to shorten the baking time and improve the printing output.
Function:
1) The machine is solid printing and color fastness,it is perfect for all kind of label printing especially for dark color materials
2) It is small dimension, low energy consumption
3) With IR drying system,the products can be dried directly after printing
4) It is single color screen printing press with sensor allow accurate repeat printing.
5) It is also available for double side printing and suitable for security identification ink apply on woven labels as well.
6) The screen frame can rise independently,like this,each to change the printing ink
7) It has Snap-off function
8) With IR drying system

Technical parameter:
Printing area		150*400mm
Printing speed		1000times/hr
Max screen frame size		300*800mm
Oven power		3KW
Air pressure		6bar-8bar
Machine size		2200*850*1550mm
Packing size		1900*900*1700mm
Machine voltage		220v single-phase 4.5KW

Detailed Photos
With double reel Solid structure and runs smoothly
Screen frame with pattern,we can help you to make it if needed Through the oven in double-layered to shorten the baking time
Satin Ribbon Screen Printing Machine Roll to Roll Print Satin Ribbon Roll to Roll 1 Color Print

---
