Automatic Bowl Machinery Price Cost Disposable Coffee Paper Cup Making Forming Machine

Product Description

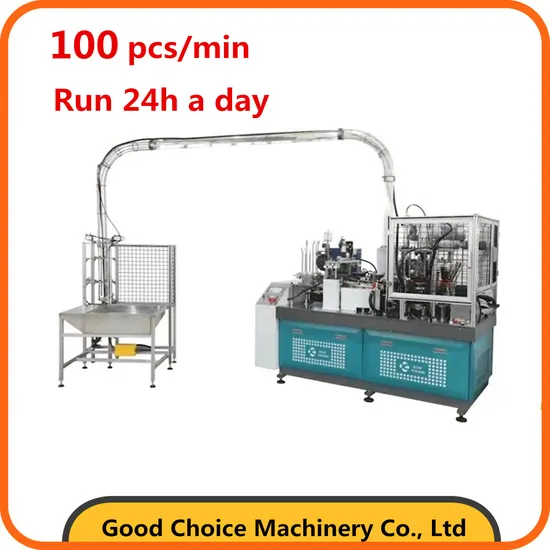

XC100 Paper Cup Machine (2.5-12oz)
XC100 vertical single-coated or double-coated paper cup machine is a kind of multi-station automatic machinery. It is the ideal equipment for producing paper test cup, market cup, advertising cup, and ice cream cup by automatic paper feeding, folding sealing, oiling, bottom punching, heating, knurling, curling, paper cup output etc continuous processes.
Product Parameters

Model	XC100 (2.5-12OZ)
Cup size	A: Top outside diameter: 43~85mm B: Height :36~115mm C: Bottom outside diameter:36~62mm D: Depth of Cup bottom: 4~9mm
Applicable Paper	150-250gsm (one side PE coated paper) 150~380gsm (two side PE coated paper) with ultrasonic
Production speed	90-100pcs/min (normal working speed,not max)
Electrical requirement	10KW 380V 50Hz
Compressed air	0.4m³/min ,Air source request (double PE): 0.4-0.6 Mpa
Weight	2400 KG
Overall dimensions	(L*W*H ) 2200x1100x1900mm

Features The machine can run 85pcs/min if the cup height lower than 87mm.And can run continuously 24 hours a day. The main-frame of the machine is an incline.And the incline can help the cups easily drop into the plastic holes,the rate of which goes up to 99.99%. The shape of the head is oblate,which can seal the cups easily.It is much better than that is round. The main transmission adopts mechanical oil supply and lubrication to improve the service life. Our Advantages 1 . Gear drive,more stable running,speed up and reduce the cost of maintenance
2 . 100 type speed reducer is used instead 80 type.higher transmission efficiency, better parallelism, sensitivity, and precision for use.
3 . Double layer sucker is used for cup fan sucked to guarantee powerful sucking and more successful.
The using life is much more longer than normal sucker.
4 . Two step paper feeding ; Automatic oil lubrication
5 . Open cam ; Metal baseboard
This machine quality is good and has high cost performance!
Packaging & Shipping

After Sales Service Pre-sales and After-sales ServicePre-sales servicea.Provide products and related consultation.b.Free provision of paper cup samples (excluding freight).c.Customers can visit the factory in person to visit the machine.After-sales service:a.Paper cup machine warranty: 1 year.b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period.c.We supply the consumable spare parts for free for one year use.
d.Professional after-sales team, video demonstration guidance.
e.Provide instruction manuals and periodic maintenance manuals.

---
